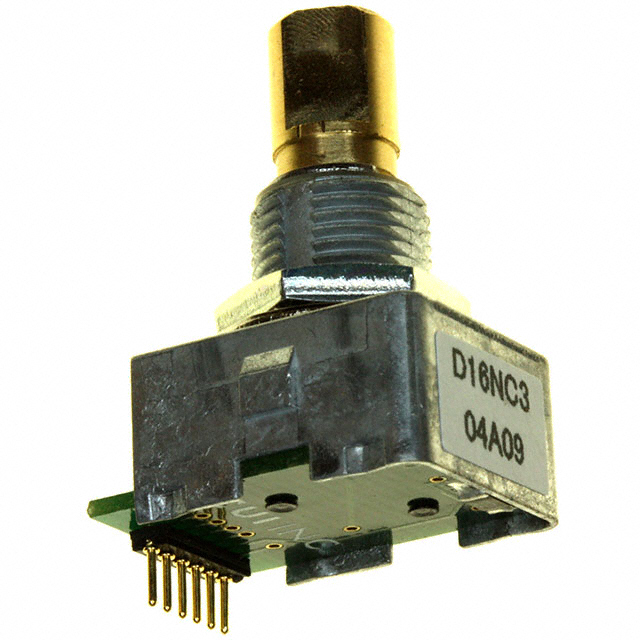

C14D16N-C3

Active

CUI Devices

ROTARY ENCODER OPTICAL 16PPR

Search across all available documentation for this part.

Active

CUI Devices

ROTARY ENCODER OPTICAL 16PPR

Technical Specifications

Parameters and characteristics for this part

Part	Orientation	Rotational Life (Cycles Min)	Termination Style	Output Type	Mounting Type	Pulses per Revolution	Actuator Type	Actuator Type	Encoder Type	Voltage - Supply [Max]	Voltage - Supply [Min]
CUI Devices C14D16N-C3	Vertical	1M	PC Pin	Quadrature (Incremental)	Panel PCB Through Hole	16	0.25	Flatted End	Optical
CUI Devices C14D16N-F3A3	Right Angle	1M	PC Pin	Quadrature (Incremental)	Panel PCB Through Hole	16	0.25	Flatted End	Optical	3.432 V	3.168 V
CUI Devices C14D16N-C3P	Vertical	1M	PC Pin	Quadrature (Incremental)	Panel PCB Through Hole	16	0.25	Flatted End	Optical	5.25 V	4.75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	250	$ 25.18

General part information

Rotary Encoder Optical 16 Quadrature (Incremental) Vertical
