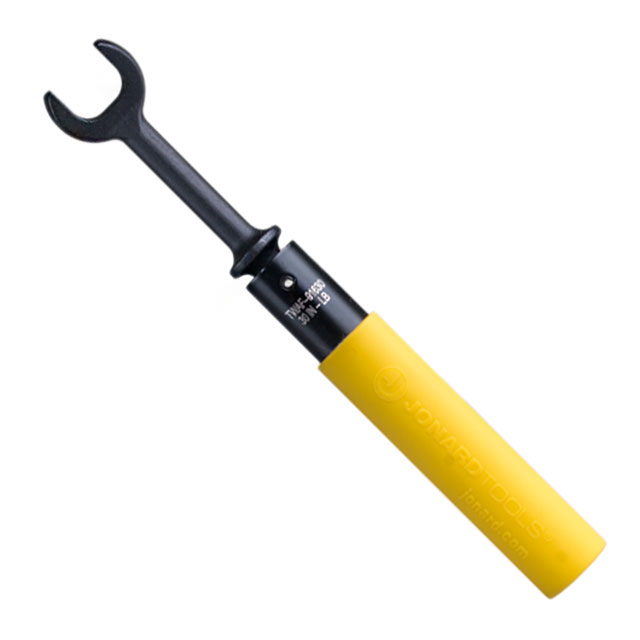

TWAF-91630

Active

OK INDUSTRIES

TORQUE, WRENCH, F-CONNECTOR, 0.563" DRIVE, 165.1MM LENGTH, 3.39N-M

Search across all available documentation for this part.

Active

OK INDUSTRIES

TORQUE, WRENCH, F-CONNECTOR, 0.563" DRIVE, 165.1MM LENGTH, 3.39N-M

Technical Specifications

Parameters and characteristics for this part

Specification	TWAF-91630

End - Size	0.5625 in
End Detail	Angled 15°
Features	Audible Click, Soft Grip, Ergonomic
Finish	Black Oxide Finish
Length	165.1 mm
Length	6.5 "
Measurement Type	SAE (Standard)
Tool Type	Torque Wrench
Torque	3.4 Nm
Torque	30 in-lbs
Weight	185.97 g
Weight	0.41 lb

Part	Tool Type	Torque	Torque	End Detail	Measurement Type	Length	Length	Weight	Weight	Features	Finish	End - Size	Length [x]	Length [x]	Torque
OK INDUSTRIES TWAFST-71622	Torque Wrench
OK INDUSTRIES TWAF-91630	Torque Wrench	3.4 Nm	30 in-lbs	Angled 15°	SAE (Standard)	165.1 mm	6.5 "	185.97 g	0.41 lb	Audible Click Ergonomic Soft Grip	Black Oxide Finish	0.5625 in
OK INDUSTRIES TWAF-91640	Torque Wrench
OK INDUSTRIES TWAFST-71630	Torque Wrench	3.4 Nm	30 in-lbs		SAE (Standard)			326.59 g	0.72 lb	Audible Click Ergonomic Security Shield Soft Grip Swiveling Head	Black Oxide Finish	0.4375 in
OK INDUSTRIES TWAF-71630K	Torque Wrench	3.4 Nm	30 in-lbs	Angled 15°	SAE (Standard)	165.1 mm	6.5 "			Audible Click Ergonomic Soft Grip	Black Oxide Finish	0.4375 in
OK INDUSTRIES TWAF-71625	Torque Wrench	2.82 Nm	25 in-lbs	Angled 15°	SAE (Standard)					Audible Click Ergonomic Soft Grip	Black Oxide Finish	0.4375 in	165.1 mm	6.5 in
OK INDUSTRIES TWAF-71620	Torque Wrench	2.3 Nm	20 in-lbs	Angled 15°	SAE (Standard)	165.1 mm	6.5 "	181.44 g	0.4 lb	Audible Click Ergonomic Soft Grip	Black Oxide Finish	0.4375 in			Fixed
OK INDUSTRIES TWAF-2244	Torque Wrench	4.52 Nm	40 in-lbs	Angled 15°	Metric					Audible Click Ergonomic Soft Grip	Black Oxide Finish	22 mm	169.7 mm	6.68 in
OK INDUSTRIES TWAF-2288	Torque Wrench	10 Nm	88 in-lbs		Metric	224.8 mm	8.85 in			Audible Click Ergonomic Soft Grip	Black Oxide Finish	22 mm			Fixed
OK INDUSTRIES TWAF-22176	Torque Wrench	20 Nm	176 in-lbs	Angled 15°	Metric	215.9 mm	8.5 "			Audible Click Ergonomic Soft Grip	Black Oxide Finish	22 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.05
		5	$ 42.95
Newark	Each	1	$ 42.95

General part information

Torque Wrench Wrench 9/16" 6.50" (165.1mm) Length
