0395265005

Active

Molex

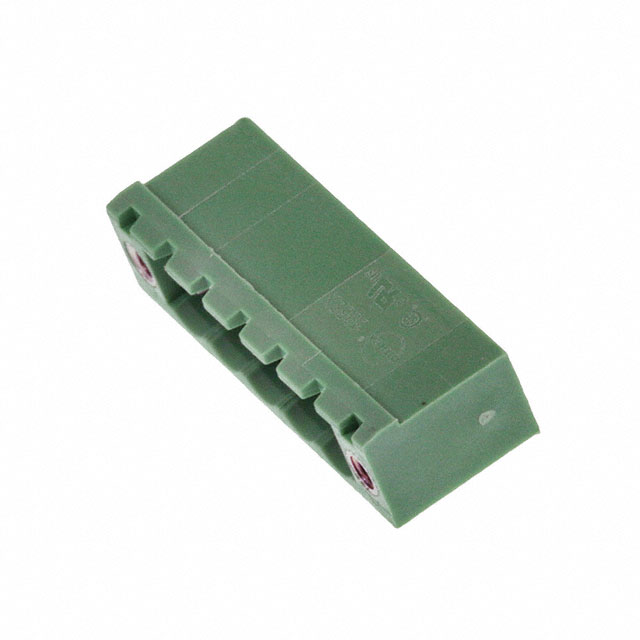

TERM BLOCK HDR 5POS 90DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0395265005

Active

Molex

TERM BLOCK HDR 5POS 90DEG 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395265005

Color	Green
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.15 in
Contact Tail Length	3.81 mm
Features	Mating Flange
Header Orientation	90°, Right Angle
Insulation Height	8.38 mm
Insulation Height	0.33 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	5
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039526 Series

Part	Material Flammability Rating	Voltage - UL	Number of Levels	Contact Mating Finish	Features	Contact Material	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Type	Positions Per Level	Housing Material	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Number of Positions	Contact Tail Length	Contact Tail Length	Color	Mounting Type	Number of Positions
Molex 0395264006	UL94 V-0	300 V	1	Tin	Mating Flange	Brass	5 mm	0.197 in	8.38 mm	0.33 in	Header Male Pins Shrouded (4 Side)	6	Polyamide (PA46) Nylon 4/6	90° Right Angle	-40 °C	120 °C	Solder	6	0.15 in	3.81 mm	Black	Through Hole
Molex 0395260024	UL94 V-0	300 V	1	Tin	Mating Flange	Brass	5 mm	0.197 in	8.38 mm	0.33 in	Header Male Pins Shrouded (4 Side)			90° Right Angle	-40 °C	105 ░C	Solder	24	0.15 in	3.81 mm	Black	Through Hole
Molex 0395265007	UL94 V-0	300 V	1	Tin	Mating Flange	Brass	5 mm	0.197 in	8.38 mm	0.33 in	Header Male Pins Shrouded (4 Side)	7		90° Right Angle	-40 °C	105 ░C	Solder	7	0.15 in	3.81 mm	Green	Through Hole
Molex 0395260023	UL94 V-0	300 V	1	Tin	Mating Flange	Brass	5 mm	0.197 in	8.38 mm	0.33 in	Header Male Pins Shrouded (4 Side)	23		90° Right Angle	-40 °C	105 ░C	Solder	23	0.15 in	3.81 mm	Black	Through Hole
Molex 0395260015	UL94 V-0	300 V	1	Tin	Mating Flange	Brass	5 mm	0.197 in	8.38 mm	0.33 in	Header Male Pins Shrouded (4 Side)	15		90° Right Angle	-40 °C	105 ░C	Solder	15	0.15 in	3.81 mm	Black	Through Hole
Molex 0395265005	UL94 V-0	300 V	1	Tin	Mating Flange	Brass	5 mm	0.197 in	8.38 mm	0.33 in	Header Male Pins Shrouded (4 Side)	5		90° Right Angle	-40 °C	105 ░C	Solder		0.15 in	3.81 mm	Green	Through Hole
Molex 0395260013	UL94 V-0	300 V	1	Tin	Mating Flange	Brass	5 mm	0.197 in	8.38 mm	0.33 in	Header Male Pins Shrouded (4 Side)	13		90° Right Angle	-40 °C	105 ░C	Solder	13	0.15 in	3.81 mm	Black	Through Hole
Molex 0395264003	UL94 V-0	300 V	1	Tin	Mating Flange	Brass	5 mm	0.197 in	8.38 mm	0.33 in	Header Male Pins Shrouded (4 Side)	3	Polyamide (PA46) Nylon 4/6	90° Right Angle	-40 °C	120 °C	Solder		0.15 in	3.81 mm	Black	Through Hole
Molex 0395260016	UL94 V-0	300 V	1	Tin	Mating Flange	Brass	5 mm	0.197 in	8.38 mm	0.33 in	Header Male Pins Shrouded (4 Side)	16		90° Right Angle	-40 °C	105 ░C	Solder		0.15 in	3.81 mm	Black	Through Hole	16
Molex 0395265006	UL94 V-0	300 V	1	Tin	Mating Flange	Brass	5 mm	0.197 in	8.38 mm	0.33 in	Header Male Pins Shrouded (4 Side)	6		90° Right Angle	-40 °C	105 ░C	Solder	6	0.15 in	3.81 mm	Green	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2400	$ 0.77

Description

General part information

039526 Series

5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
