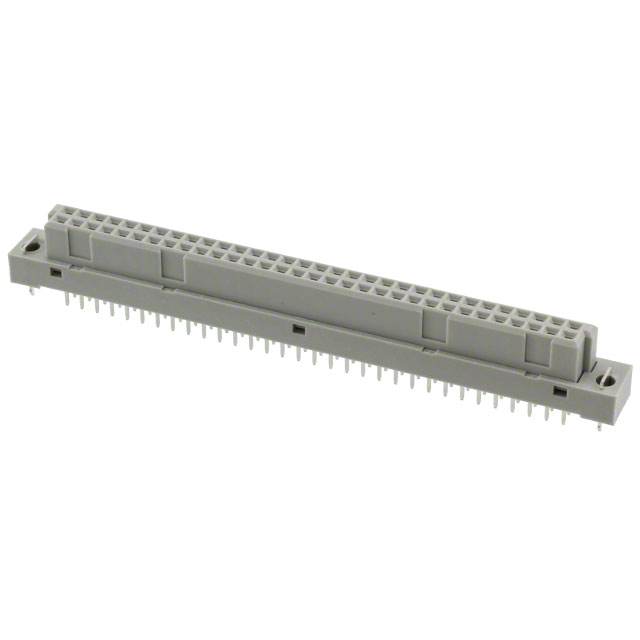

PCN10EA-64S-2.54DSA(72)

Obsolete

Hirose Electric USA, Inc.

CONN DIN RCPT 64POS PCB GOLD

Deep-Dive with AI

Search across all available documentation for this part.

PCN10EA-64S-2.54DSA(72)

Obsolete

Hirose Electric USA, Inc.

CONN DIN RCPT 64POS PCB GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCN10EA-64S-2.54DSA(72)

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Current Rating (Amps)	2 A
Material - Insulation	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

PCN10 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Current Rating (Amps)	Material - Insulation	Style	Material Flammability Rating	Mounting Type	Contact Finish	Number of Rows	Number of Positions Loaded	Termination	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Positions	For Use With/Related Products	Wire Entry Location	Tool Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]
Hirose Electric USA, Inc. PCN10A-32P-2.54DS(72)	85 °C	-55 °C	Header Male Pins	2 A	Polybutylene Terephthalate (PBT)	B	UL94 V-0	Through Hole Right Angle	Gold	2	All	Solder	2.54 mm	0.1 in	8 çin	0.203 çm
Hirose Electric USA, Inc. PCN10C-44S-2.54DS(72)	85 °C	-55 °C	Receptacle Female Sockets	2 A	Polybutylene Terephthalate (PBT)	B	UL94 V-0	Through Hole Right Angle	Gold	2	All	Solder	2.54 mm	0.1 in	8 çin	0.203 çm	44
Hirose Electric USA, Inc. PCN10-64S-2.54WA(72)	85 °C	-55 °C	Receptacle Female Sockets	2 A	Polybutylene Terephthalate (PBT)	B	UL94 V-0	Through Hole	Gold	2	All	Wire Wrap	2.54 mm	0.1 in			64
Hirose Electric USA, Inc. PCN10EA-64S-2.54DSA(72)	85 °C	-55 °C	Receptacle Female Sockets	2 A	Polybutylene Terephthalate (PBT)		UL94 V-0	Through Hole	Gold	2	All	Solder	2.54 mm	0.1 in	8 çin	0.203 çm	64
Hirose Electric USA, Inc. PCN10HC-16P-2.54DSA(72)	85 °C	-55 °C	Header Male Pins	2 A	Polybutylene Terephthalate (PBT)		UL94 V-0	Through Hole	Gold	2	All	Solder	2.54 mm	0.1 in	8 çin	0.203 çm		16
Hirose Electric USA, Inc. PCN10EA-64P-2.54DS(77)	85 °C	-55 °C	Header Male Pins	2 A	Polybutylene Terephthalate (PBT)		UL94 V-0	Through Hole Right Angle	Gold	2	All	Solder	2.54 mm	0.1 in	8 çin	0.203 çm	64
Hirose Electric USA, Inc. PCN10C-64ACS-2.54DSA(72)	85 °C	-55 °C	Receptacle Female Sockets	2 A	Polybutylene Terephthalate (PBT)		UL94 V-0	Through Hole	Gold	2	All	Solder	2.54 mm	0.1 in	8 çin	0.203 çm	64
Hirose Electric USA, Inc. PCN10-TA2226HC																			Backplane Contacts	Side Entry	Hand Crimper	22 AWG	26 AWG
Hirose Electric USA, Inc. PCN10MC-44S-2.54DSA(72)	85 °C	-55 °C	Receptacle Female Sockets	2 A	Polybutylene Terephthalate (PBT)		UL94 V-0	Through Hole	Gold	2	All	Solder	2.54 mm	0.1 in	8 çin	0.203 çm	44
Hirose Electric USA, Inc. PCN10EA-100S-2.54DSA(72)	85 °C	-55 °C	Receptacle Female Sockets	2 A	Polybutylene Terephthalate (PBT)	B	UL94 V-0	Through Hole	Gold	2	All	Solder	2.54 mm	0.1 in			100

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PCN10 Series

64 Position Din Connector Receptacle, Female Sockets Gold Through Hole
