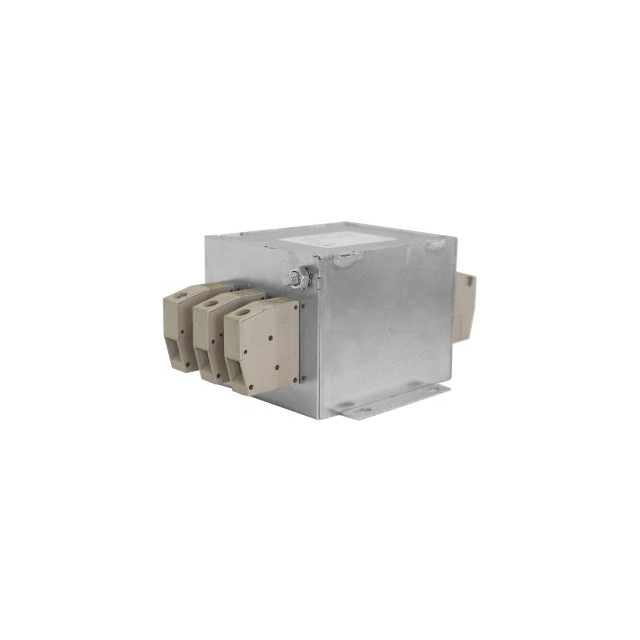

RP305-40-0-C

Active

Astrodyne TDI

LINE FILTER 480VAC 40A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP305-40-0-C

Active

Astrodyne TDI

LINE FILTER 480VAC 40A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP305-40-0-C

Applications	General Purpose
Approval Agency	CE, cURus, CSA, SEMKO
Configuration	Single Stage
Current	40 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC	480 V
Voltage - Rated AC (Phase to Ground/Neutral)	3.5 kV

RP305 Series

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC (Phase to Ground/Neutral)	Mounting Type	Operating Temperature [custom]	Applications	Termination Style	Configuration	Current	Filter Type	Voltage - Rated AC	Approval Agency
Astrodyne TDI RP305-20-10-W	60 Hz	50 Hz	3.5 kV	Chassis Mount	-25 °C 100 °C	General Purpose	Wire Leads	Single Stage	20 A	Three Phase (Delta)	480 V	CE CSA cURus SEMKO
Astrodyne TDI RP305-10-10-W	60 Hz	50 Hz	3.5 kV	Chassis Mount	-25 °C 100 °C	General Purpose	Wire Leads	Single Stage	10 A	Three Phase (Delta)	480 V	CE CSA cURus SEMKO
Astrodyne TDI RP305-6-100-S	60 Hz	50 Hz	3.5 kV	Chassis Mount	-25 °C 100 °C	General Purpose	Threaded Post (M5)	Single Stage	6 A	Three Phase (Delta)	480 V	CE CSA cURus SEMKO
Astrodyne TDI RP305-20-1000-W	60 Hz	50 Hz	3.5 kV	Chassis Mount	-25 °C 100 °C	General Purpose	Wire Leads	Single Stage	20 A	Three Phase (Delta)	480 V	CE CSA cURus SEMKO
Astrodyne TDI RP305-40-0-C	60 Hz	50 Hz	3.5 kV	Chassis Mount	-25 °C 100 °C	General Purpose	Terminal Block	Single Stage	40 A	Three Phase (Delta)	480 V	CE CSA cURus SEMKO
Astrodyne TDI RP305-40-100-S	60 Hz	50 Hz	3.5 kV	Chassis Mount	-25 °C 100 °C	General Purpose	Threaded Post (M5)	Single Stage	40 A	Three Phase (Delta)	480 V	CE CSA cURus SEMKO
Astrodyne TDI RP305-6-1000-W	60 Hz	50 Hz	3.5 kV	Chassis Mount	-25 °C 100 °C	General Purpose	Wire Leads	Single Stage	6 A	Three Phase (Delta)	480 V	CE CSA cURus SEMKO
Astrodyne TDI RP305-60-100-C	60 Hz	50 Hz	3.5 kV	Chassis Mount	-25 °C 100 °C	General Purpose	Terminal Block	Single Stage	60 A	Three Phase (Delta)	480 V	CE CSA cURus SEMKO
Astrodyne TDI RP305-40-1000-S	60 Hz	50 Hz	3.5 kV	Chassis Mount	-25 °C 100 °C	General Purpose	Threaded Post (M5)	Single Stage	40 A	Three Phase (Delta)	480 V	CE CSA cURus SEMKO
Astrodyne TDI RP305-40-0-W	60 Hz	50 Hz	3.5 kV	Chassis Mount	-25 °C 100 °C	General Purpose	Wire Leads	Single Stage	40 A	Three Phase (Delta)	480 V	CE CSA cURus SEMKO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 194.12

Description

General part information

RP305 Series

Three Phase (Delta) EMC/EMI Line Filter 40 A 480V 50/60Hz Single Stage Terminal Block
