X9001091-W3DSMB
ActiveKyocera AVX

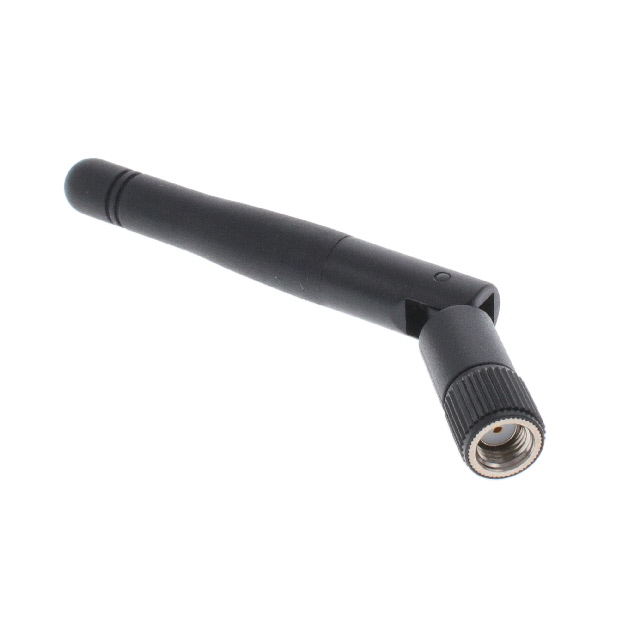

ANTENNA, WLAN BLACK SMA MALE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
X9001091-W3DSMB
ActiveKyocera AVX
ANTENNA, WLAN BLACK SMA MALE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X9001091-W3DSMB |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | WLAN, Bluetooth, Wi-Fi, Zigbee™ |
| Frequency (Center/Band) | 2.4425 GHz, 5.5 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 5.85 GHz, 2.485 GHz |
| Frequency Range [Min] | 5.15 GHz, 2.4 GHz |
| Gain | 1.8 dBi, 4 dBi |
| Height (Max) [Max] | 3.307 in |
| Height (Max) [Max] | 84 mm |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| Return Loss [Max] | -11 dB |
| Return Loss [Min] | -14 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.02 | |
| 10 | $ 3.35 | |||
| 25 | $ 2.91 | |||
| 100 | $ 2.42 | |||
| 300 | $ 2.15 | |||
| 500 | $ 2.04 | |||
| 1000 | $ 1.92 | |||
| 2500 | $ 1.79 | |||
| 5000 | $ 1.71 | |||
Description
General part information
X9001091 Series
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Whip, Tilt SMA Male Connector Mount
