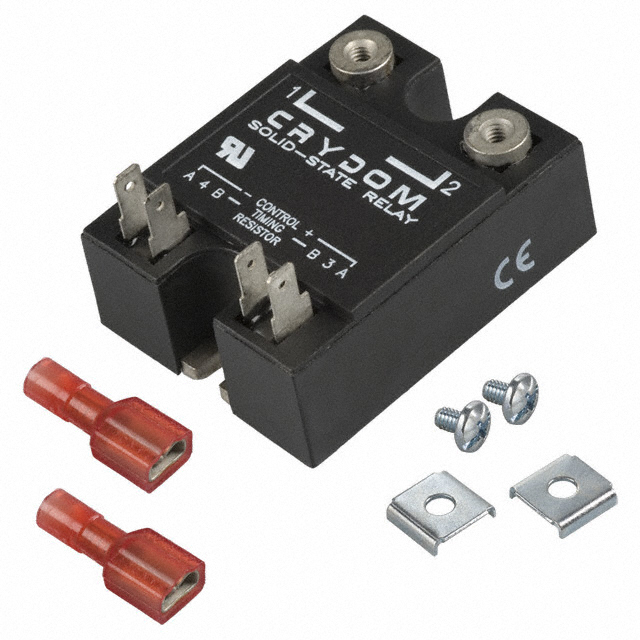

DSD2425

NRND

Sensata-Crydom

RELAY TIME DELAY 8.3SEC 25A 280V

Search across all available documentation for this part.

NRND

Sensata-Crydom

RELAY TIME DELAY 8.3SEC 25A 280V

Technical Specifications

Parameters and characteristics for this part

Specification	DSD2425

Contact Rating @ Voltage [custom]	25 A
Contact Rating @ Voltage [custom]	280 VAC
Delay Time [Max]	8.3 Sec
Delay Time [Min]	0.1 Sec
Function	On-Delay
Mounting Type	Chassis Mount
Relay Type	Solid State Relay
Termination Style	0.187 in, 4.7 mm
Termination Style	Quick Connect, Screw Terminal
Timing Adjustment Method	External Resistor
Timing Initiate Method	Input Voltage
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	3.5 V

Part	Timing Initiate Method	Timing Adjustment Method	Relay Type	Delay Time [Min]	Delay Time [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Termination Style	Function	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]	Mounting Type
Sensata-Crydom DSD2425	Input Voltage	External Resistor	Solid State Relay	0.1 Sec	8.3 Sec	3.5 V	15 V	0.187 in 4.7 mm	Quick Connect Screw Terminal	On-Delay	25 A	280 VAC	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

On-Delay Time Delay Relay SPST-NO (1 Form A) 0.1 Sec ~ 8.3 Sec Delay 25A @ 280VAC Chassis Mount
