C1164.41.01

Active

Prysmian Group

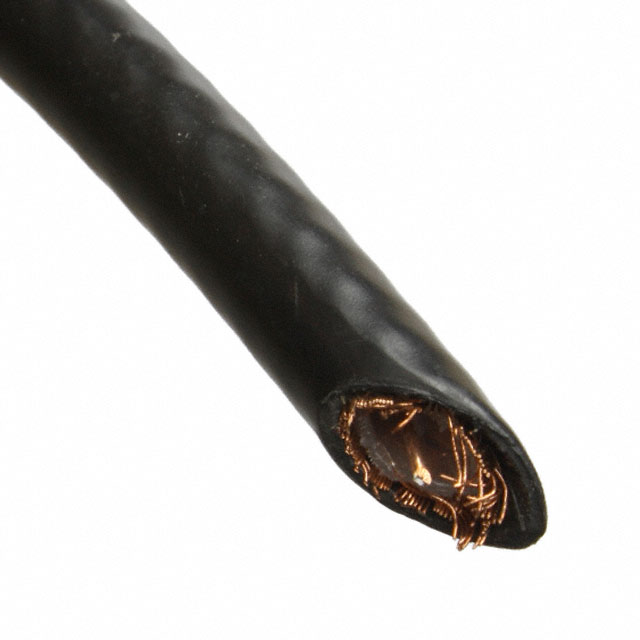

CABLE COAXIAL RG62 22AWG

Search across all available documentation for this part.

Active

Prysmian Group

CABLE COAXIAL RG62 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	C1164.41.01

Cable Group	RG-62
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.144 "
Dielectric Diameter [diameter]	3.66 mm
Dielectric Material	Semi Solid Polyethylene (SSP)
Impedance	93 Ohms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Length [x]	100 ft
Length [x]	30.48 m
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Network, RF Signal
VoP, Velocity of Propagation	84
Wire Gauge	0.32 mm˛
Wire Gauge	22 AWG

Part	Jacket Color	Usage	Impedance	Shield Material	Length [x]	Length [x]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Dielectric Material	Jacket (Insulation) Material	Conductor Material	Conductor Strand	Cable Group	Wire Gauge	Wire Gauge	VoP, Velocity of Propagation	Cable Type	Shield Type	Length	Length	Shield Coverage
Prysmian Group C1164.41.01	Black	Network RF Signal	93 Ohms	Copper Bare	100 ft	30.48 m	0.144 "	3.66 mm	Semi Solid Polyethylene (SSP)	Poly-Vinyl Chloride (PVC)	Copper Coated Steel	Solid	RG-62	0.32 mm˛	22 AWG	84	Coaxial	Braid	304.8 m	1000 ft	95 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	25000	$ 0.45

General part information

Coaxial Cable 22 AWG (0.32mm˛) RG-62 1000.0' (304.80m) 93 Ohms

Technical documentation and resources

No documents available
