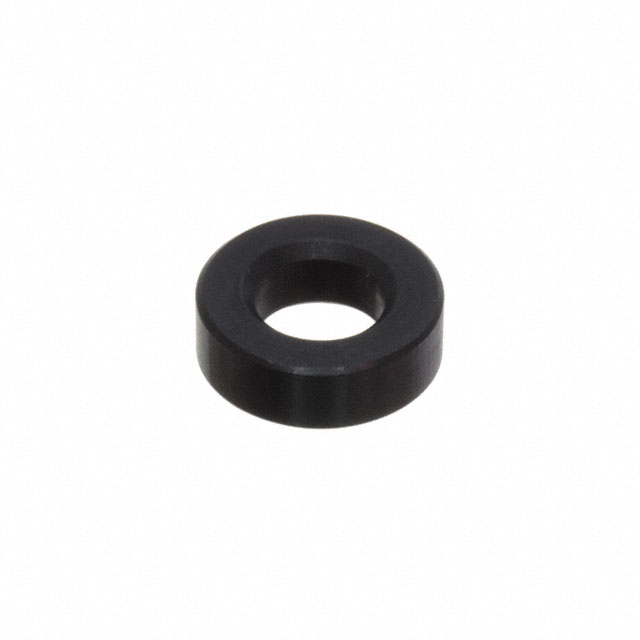

1184-10-AL-24

Active

RAF Electronic Hardware

3/8 RD X 1/8 X .192 ID

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPlating,Finish Codes,Materials Options Datasheet

1184-10-AL-24

Active

RAF Electronic Hardware

3/8 RD X 1/8 X .192 ID

Deep-Dive with AI

DocumentsPlating,Finish Codes,Materials Options Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1184-10-AL-24

Between Board Height	0.125 in
Between Board Height	3.18 mm
Between Board Height	0.125 in
Color	Black
Diameter - Inside [diameter]	4.88 mm
Diameter - Inside [diameter]	0.192 in
Diameter - Outside [diameter]	0.375 in
Diameter - Outside [diameter]	0.375 in
Diameter - Outside [diameter]	9.53 mm
Gender	Female
Length - Overall	0.125 "
Length - Overall	3.18 mm
Length - Overall	0.125 "
Material	Aluminum
Plating	Anodized
Threaded/Unthreaded	Unthreaded
Type	Round Spacer

1184 Series

Part	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Gender	Color	Length - Overall	Length - Overall	Length - Overall	Threaded/Unthreaded	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Between Board Height	Between Board Height	Between Board Height	Plating	Type	Length - Overall [x]	Length - Overall [x]
RAF Electronic Hardware 1184-10-AL-24	4.88 mm	0.192 in	Female	Black	0.125 "	3.18 mm	0.125 "	Unthreaded	0.375 in	0.375 in	9.53 mm	Aluminum	0.125 in	3.18 mm	0.125 in	Anodized	Round Spacer
RAF Electronic Hardware 1184-12-S-12	5.54 mm	0.218 in	Female	Clear	0.125 "	3.18 mm	0.125 "	Unthreaded	0.375 in	0.375 in	9.53 mm		0.125 in	3.18 mm	0.125 in	Chromate Zinc	Round Spacer
RAF Electronic Hardware 1184-10-AL	4.88 mm	0.192 in	Female		0.125 "	3.18 mm	0.125 "	Unthreaded	0.375 in	0.375 in	9.53 mm	Aluminum	0.125 in	3.18 mm	0.125 in		Round Spacer
RAF Electronic Hardware 1184T-12-N	5.54 mm	0.218 in	Female					Unthreaded	0.375 in	0.375 in	9.53 mm	Nylon		3.97 mm	0.156 in		Round Spacer	0.156 in	3.97 mm
RAF Electronic Hardware 1184-12-B-12	5.54 mm	0.218 in	Female	Clear	0.125 "	3.18 mm	0.125 "	Unthreaded	0.375 in	0.375 in	9.53 mm	Brass	0.125 in	3.18 mm	0.125 in	Chromate Zinc	Round Spacer
RAF Electronic Hardware 1184-10-SS-20	3.56 mm	0.14 in	Female		0.125 "	3.18 mm	0.125 "	Unthreaded	0.375 in	0.375 in	9.53 mm	Stainless Steel	0.125 in	3.18 mm	0.125 in	Passivated	Round Spacer
RAF Electronic Hardware 1184-8-N	4.22 mm	0.166 in	Female		0.125 "	3.18 mm	0.125 "	Unthreaded	0.375 in	0.375 in	9.53 mm	Nylon	0.125 in	3.18 mm	0.125 in		Round Spacer
RAF Electronic Hardware 1184T-8-AL	3.56 mm	0.14 in	Female					Unthreaded	0.375 in	0.375 in	9.53 mm	Aluminum		3.97 mm	0.156 in		Round Spacer	0.156 in	3.97 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.74
		5	$ 2.32
		10	$ 2.18
		25	$ 2.01
		50	$ 1.90
		100	$ 1.80
		250	$ 1.68
		500	$ 1.60
		1000	$ 1.53
