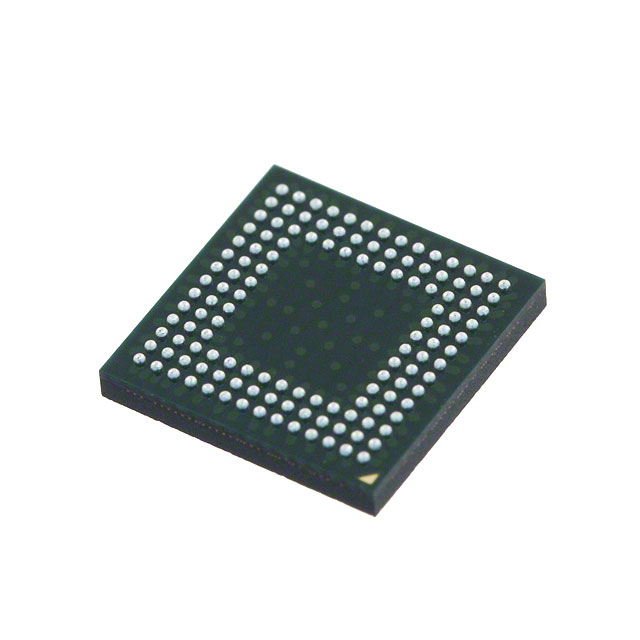

LCMXO1200C-4MN132I

Active

LATTICE SEMICONDUCTOR

IC FPGA 101 I/O 132CSBGA

Search across all available documentation for this part.

Active

LATTICE SEMICONDUCTOR

IC FPGA 101 I/O 132CSBGA

Technical Specifications

Parameters and characteristics for this part

Specification	LCMXO1200C-4MN132I

Mounting Type	Surface Mount
Number of I/O	101
Number of LABs/CLBs [custom]	150
Number of Logic Elements/Cells [custom]	1200
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Package / Case	CSPBGA, 132-LFBGA
Supplier Device Package	132-CSPBGA (8x8)
Total RAM Bits	9421 bits
Voltage - Supply [Max]	3.465 V
Voltage - Supply [Min]	1.71 V

Part	Supplier Device Package	Number of LABs/CLBs [custom]	Number of Logic Elements/Cells [custom]	Number of I/O	Package / Case	Mounting Type	Total RAM Bits	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]
LATTICE SEMICONDUCTOR LCMXO1200E-3BN256C	256-CABGA (14x14)	150	1200	211	256-LFBGA CSPBGA	Surface Mount	9421 bits	0 °C	85 °C
LATTICE SEMICONDUCTOR LCMXO1200C-4FTN256C	256-FTBGA (17x17)	150	1200	211	256-LBGA	Surface Mount	9421 bits	0 °C	85 °C	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LCMXO1200C-3BN256I	256-CABGA (14x14)	150	1200	211	256-LFBGA CSPBGA	Surface Mount	9421 bits	-40 C	100 °C	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LCMXO1200C-4BN256I	256-CABGA (14x14)	150	1200	211	256-LFBGA CSPBGA	Surface Mount	9421 bits	-40 C	100 °C	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LCMXO1200E-3TN100I	100-TQFP (14x14)	150	1200	73	100-LQFP	Surface Mount	9421 bits	-40 C	100 °C
LATTICE SEMICONDUCTOR LCMXO1200C-4MN132I	132-CSPBGA (8x8)	150	1200	101	132-LFBGA CSPBGA	Surface Mount	9421 bits	-40 C	100 °C	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LCMXO1200C-4B256I	256-CABGA (14x14)	150	1200	211	256-LFBGA CSPBGA	Surface Mount	9421 bits	-40 C	100 °C	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LCMXO1200C-5FT256C	256-FTBGA (17x17)	150	1200	211	256-LBGA	Surface Mount	9421 bits	0 °C	85 °C	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LCMXO1200E-4T144C	144-TQFP (20x20)	150	1200	113 I/O	144-LQFP	Surface Mount	9421 bits	0 °C	85 °C
LATTICE SEMICONDUCTOR LCMXO1200C-4TN144I	144-TQFP (20x20)	150	1200	113 I/O	144-LQFP	Surface Mount	9421 bits	-40 C	100 °C	3.465 V	1.71 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	360	$ 27.43
Newark	Each	250	$ 28.70

General part information

MachXO Field Programmable Gate Array (FPGA) IC 101 9421 1200 132-LFBGA, CSPBGA

Technical documentation and resources
