Technical Specifications
Parameters and characteristics for this part
| Specification | KR DMLS31.FR-Z7K5-AF-8E8G-700-S |
|---|---|
| Color | Red |
| Current - Max [Max] | 800 mA |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Lumens/Watt @ Current - Test | 49 lm/W |
| Luminous Flux @ Current/Temperature | 108 lm |
| Mounting Type | Surface Mount |
| Package / Case | 1108 |
| Package / Case | 2720 |
| Size / Dimension [x] | 2.75 mm |
| Size / Dimension [x] | 0.108 " |
| Size / Dimension [y] | 0.079 in |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.24 | |
| 10 | $ 0.87 | |||
| 100 | $ 0.65 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.52 | |||
| 2000 | $ 0.49 | |||
| Digi-Reel® | 1 | $ 1.24 | ||
| 10 | $ 0.87 | |||
| 100 | $ 0.65 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.52 | |||
| 2000 | $ 0.49 | |||
| Tape & Reel (TR) | 4000 | $ 0.47 | ||
| 6000 | $ 0.48 | |||
| 8000 | $ 0.45 | |||
| 10000 | $ 0.47 | |||
| 12000 | $ 0.44 | |||
| 20000 | $ 0.43 | |||
Description
General part information
KRDMLS Series

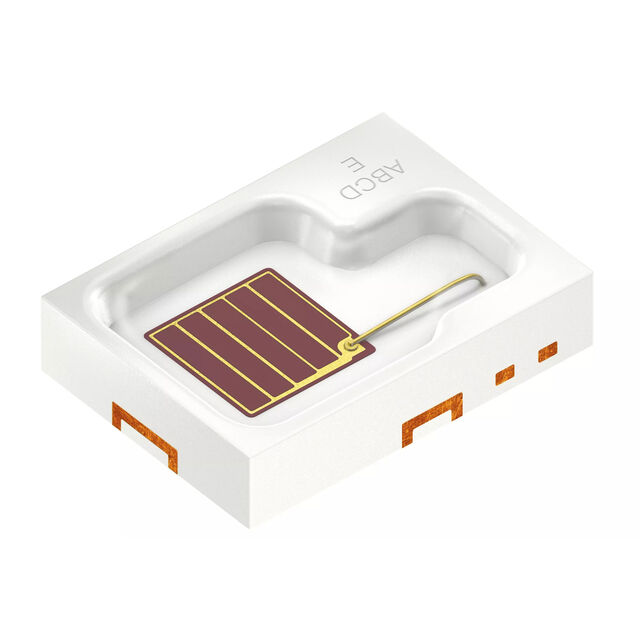

LED Lighting Color SYNIOS® P2720 Red 1108 (2720 Metric)
Documents
Technical documentation and resources
