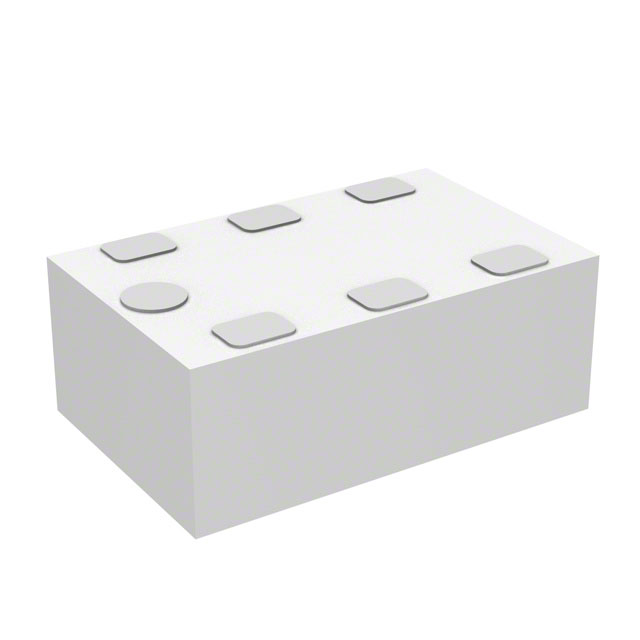

B0809J50ATI
ActiveTTM Technologies, Inc.
BALUN 850MHZ-915MHZ 0805
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B0809J50ATI
ActiveTTM Technologies, Inc.
BALUN 850MHZ-915MHZ 0805
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B0809J50ATI |
|---|---|
| Frequency Range [Max] | 915 MHz |
| Frequency Range [Min] | 850 MHz |
| Impedance - Unbalanced/Balanced | 50 Ohm |
| Impedance - Unbalanced/Balanced | -Ohm |
| Insertion Loss (Max) | 0.6 dB |
| Mounting Type | Surface Mount |
| Package / Case | 0805 |
| Return Loss (Min) [Min] | 15.3 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.72 | |
| 10 | $ 0.65 | |||
| 25 | $ 0.63 | |||
| 50 | $ 0.61 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.57 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.53 | |||
| Digi-Reel® | 1 | $ 0.72 | ||
| 10 | $ 0.65 | |||
| 25 | $ 0.63 | |||
| 50 | $ 0.61 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.57 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.53 | |||
| Tape & Reel (TR) | 4000 | $ 0.34 | ||
| 8000 | $ 0.34 | |||
Description
General part information
B0809J50 Series
RF Balun 850MHz ~ 915MHz 50 / -Ohm 0805 (2012 Metric)
Documents
Technical documentation and resources
