SI-3006KWM

Obsolete

Sanken Electric USA Inc.

IC REG LIN 1.8V/3.3V 1A/1A TO252

Search across all available documentation for this part.

Obsolete

Sanken Electric USA Inc.

IC REG LIN 1.8V/3.3V 1A/1A TO252

Technical Specifications

Parameters and characteristics for this part

Specification	SI-3006KWM

Control Features	Enable
Current - Output	1 A
Current - Quiescent (Iq)	0.5 mA
Current - Supply (Max) [Max]	1.5 mA
Mounting Type	Surface Mount
Number of Regulators	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Output Configuration	Positive
Output Type	1.81 mOhm

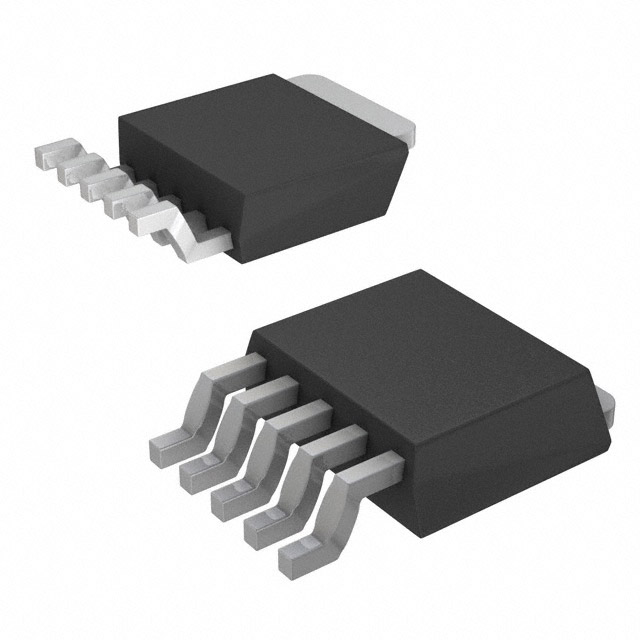

Package / Case	TO-252-6, DPAK (5 Leads + Tab)
Protection Features	Over Current, Over Temperature
PSRR	60 dB
Supplier Device Package	TO-252-5
Voltage - Input (Max) [Max]	18 V
Voltage - Output (Min/Fixed)	1.8 V, 3.3 V
Voltage Dropout (Max) [Max]	0.6 V

Part	Mounting Type	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Iq)	Output Type	Current - Output	PSRR	Voltage Dropout (Max) [Max]	Control Features	Voltage - Output (Min/Fixed)	Package / Case	Current - Supply (Max) [Max]	Number of Regulators	Protection Features	Voltage - Input (Max) [Max]	Supplier Device Package
Sanken Electric USA Inc. SI-3006KWM	Surface Mount	Positive	100 °C	-20 C	0.5 mA	1.81 mOhm	1 A	60 dB	0.6 V	Enable	1.8 V 3.3 V	TO-252-6 DPAK (5 Leads + Tab)	1.5 mA	2	Over Current Over Temperature	18 V	TO-252-5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 2 Output 1A, 1A TO-252-5

Technical documentation and resources

No documents available
