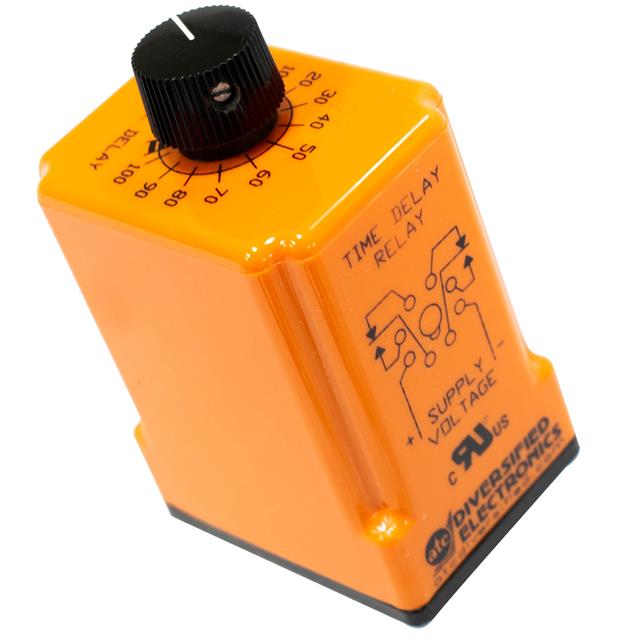

TDT-240-AKA-200
ObsoleteATC-Diversified Electronics
RELAY TIME DELAY 200SEC 10A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TDT-240-AKA-200
ObsoleteATC-Diversified Electronics
RELAY TIME DELAY 200SEC 10A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TDT-240-AKA-200 |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 10 A |
| Delay Time [Max] | 200 Sec |
| Delay Time [Min] | 2 s |
| Function | Off-Delay |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 208 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TDT-240 Series
Off-Delay Time Delay Relay DPDT (2 Form C) 2 Sec ~ 200 Sec Delay 10A @ 250VAC/24VDC Socketable
