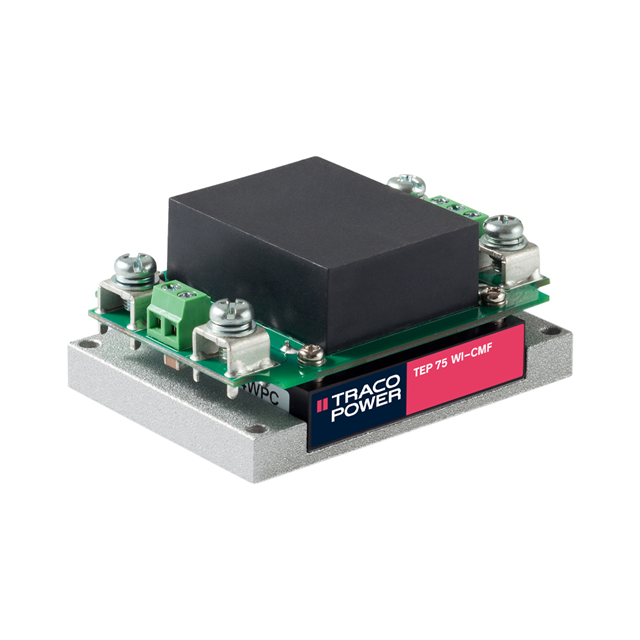

TEP 75-4815WI-CMF

Active

Traco Power

DC/DC CONVERTER 24V 77W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TEP 75-4815WI-CMF

Active

Traco Power

DC/DC CONVERTER 24V 77W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEP 75-4815WI-CMF

Applications	Railway, ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output (Max) [Max]	3.2 A
Efficiency	88 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Power (Watts)	77 W
Size / Dimension [x]	3.35 in
Size / Dimension [x]	85.1 mm
Size / Dimension [y]	2.4 "
Size / Dimension [y]	61 mm
Size / Dimension [z]	1.53 in
Size / Dimension [z]	38.9 mm
Type	Open Frame
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

TEP 75 Series

Part	Approval Agency	Voltage - Input (Max) [Max]	Type	Number of Outputs	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Voltage - Output 1	Mounting Type	Current - Output (Max) [Max]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Supplier Device Package	Features	Package / Case
Traco Power TEP 75-4812WI-CM	CB CE cURus	75 V	Open Frame	1	ITE (Commercial) Railway	3.35 in	2.4 "	85.1 mm	27.9 mm	61 mm	1.1 in	90 %	12 V	Chassis Mount	6.3 A	3000 V	-40 °C	75 ░C	18 V	76 W
Traco Power TEP 75-7216WI-CMF	CB CE cURus	160 V	Open Frame	1	ITE (Commercial) Railway	3.35 in	2.4 "	85.1 mm	38.9 mm	61 mm	1.53 in	90 %	28 V	Chassis Mount	2.7 A	3000 V	-40 °C	75 ░C	43 V	76 W
Traco Power TEP 75-2415WI-CMF	CB CE cURus	36 V	Open Frame	1	ITE (Commercial) Railway	3.35 in	2.4 "	85.1 mm	38.9 mm	61 mm	1.53 in	87 %	24 V	Chassis Mount	3.2 A	3000 V	-40 °C	75 ░C	9 V	77 W
Traco Power TEP 75-4815WI-CMF	CB CE cURus	75 V	Open Frame	1	ITE (Commercial) Railway	3.35 in	2.4 "	85.1 mm	38.9 mm	61 mm	1.53 in	88 %	24 V	Chassis Mount	3.2 A	3000 V	-40 °C	75 ░C	18 V	77 W
Traco Power TEP 75-2411WI-CMF	CB CE cURus	36 V	Open Frame	1	ITE (Commercial) Railway	3.35 in	2.4 "	85.1 mm	38.9 mm	61 mm	1.53 in	88 %	5 V	Chassis Mount	15 A	3000 V	-40 °C	75 ░C	9 V	75 W
Traco Power TEP 75-2410WI		36 V	Isolated Module	1	ITE (Commercial) Railway	2.4 in	2.28 in	61 mm	12.7 mm	57.9 mm	0.5 in		3.3 V	Through Hole	20 A	2250 VDC	-40 °C	75 ¯C	9 V		Half Brick	OTP OVP Remote On/Off SCP UVLO	Half Brick
Traco Power TEP 75-4815WI		75 V	Isolated Module	1	ITE (Commercial) Railway	2.4 in	2.28 in	61 mm	12.7 mm	57.9 mm	0.5 in	88 %	24 V	Through Hole	3.2 A	2250 VDC	-40 °C	75 ░C	18 V	77 W		OTP OVP Remote On/Off SCP UVLO	9-DIP Module
Traco Power TEP 75-2413WI-CM	CB CE cURus	36 V	Open Frame	1	ITE (Commercial) Railway	3.35 in	2.4 "	85.1 mm	27.9 mm	61 mm	1.1 in	88 %	15 V	Chassis Mount	5 A	3000 V	-40 °C	75 ░C	9 V	75 W
Traco Power TEP 75-4816WI-CM	CB CE cURus	75 V	Open Frame	1	ITE (Commercial) Railway	3.35 in	2.4 "	85.1 mm	27.9 mm	61 mm	1.1 in	88 %	28 V	Chassis Mount	2.7 A	3000 V	-40 °C	75 ░C	18 V	76 W
Traco Power TEP 75-2415WI-CM	CB CE cURus	36 V	Open Frame	1	ITE (Commercial) Railway	3.35 in	2.4 "	85.1 mm	27.9 mm	61 mm	1.1 in	87 %	24 V	Chassis Mount	3.2 A	3000 V	-40 °C	75 ░C	9 V	77 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 234.60
		10	$ 206.00
		25	$ 199.20
		50	$ 194.21
		100	$ 174.15

Description

General part information

TEP 75 Series

Open Frame DC DC Converter 1 Output 24V 3.2A 75V Input

Documents

Technical documentation and resources
