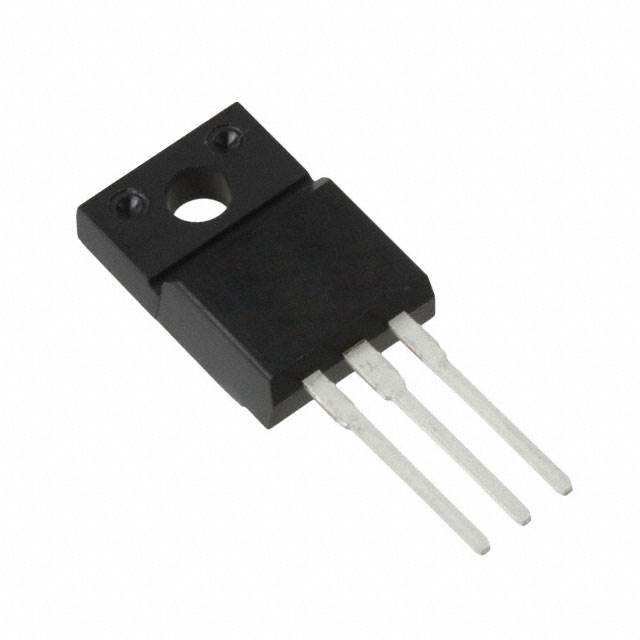

2SD2012

Obsolete

STMicroelectronics

TRANS NPN 60V 3A TO220F

Search across all available documentation for this part.

Obsolete

STMicroelectronics

TRANS NPN 60V 3A TO220F

Technical Specifications

Parameters and characteristics for this part

Specification	2SD2012

Current - Collector (Ic) (Max) [Max]	3 A
Current - Collector Cutoff (Max) [Max]	100 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Frequency - Transition	3 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TO-220-3 Full Pack
Power - Max [Max]	25 W
Supplier Device Package	TO-220F
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	1 V
Voltage - Collector Emitter Breakdown (Max)	60 V

Part	Transistor Type	Power - Max [Max]	Supplier Device Package	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	Package / Case	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Mounting Type	Operating Temperature
STMicroelectronics 2SD2012	NPN	25 W	TO-220F	3 MHz	100	3 A	60 V	TO-220-3 Full Pack	100 µA	1 V	Through Hole	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 60 V 3 A 3MHz 25 W Through Hole TO-220F
