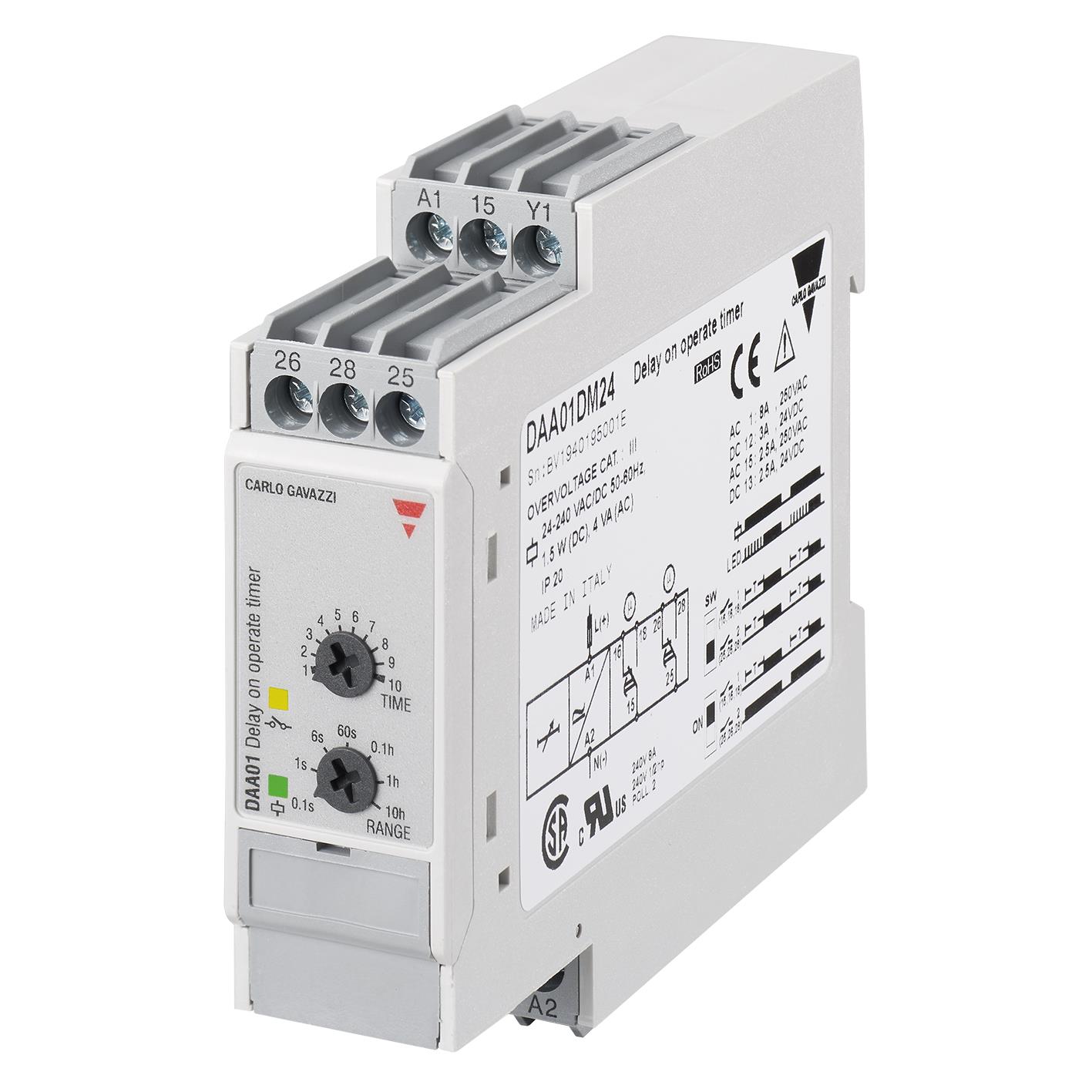

DAA01CM24
ActiveCARLO GAVAZZI
RELAY TIME DELAY 100HR 8A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DAA01CM24
ActiveCARLO GAVAZZI
RELAY TIME DELAY 100HR 8A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DAA01CM24 |
|---|---|
| Contact Rating @ Voltage | 250 VAC, 8 A |
| Delay Time [Max] | 100 Hrs |
| Delay Time [Min] | 0.1 Sec |
| Function | On-Delay |
| Mounting Type | DIN Rail |
| Relay Type | Mechanical Relay |
| Termination Style | Screw Terminal |
| Timing Adjustment Method | Screwdriver Slot |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 24 VDC |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 97.85 | |
| 5 | $ 92.96 | |||
| 10 | $ 90.02 | |||
| 25 | $ 87.09 | |||
Description
General part information
DAA01 Series
On-Delay Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 100 Hrs Delay 8A @ 250VAC DIN Rail
Documents
Technical documentation and resources
