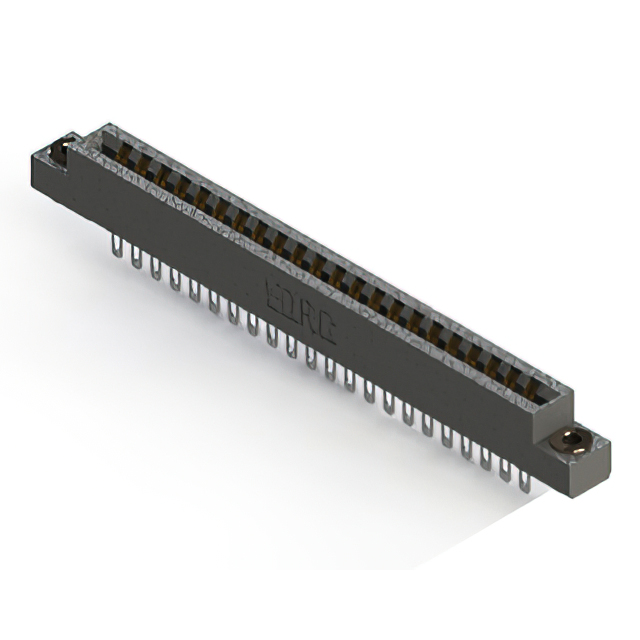

356-022-500-103
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-022-500-103
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-022-500-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
356-022 Series
| Part | Termination Rows | Termination | Number of Positions/Bay/Row [custom] | Contact Finish | Gender | Card Type | Flange Feature | Contact Type | Contact Material | Pitch [x] | Pitch [x] | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Read Out | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | Solder Eyelet(s) | 22 | Tin | Female | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Copper Alloy | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Dual | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | ||||||
EDAC Inc. | 1 | Solder | 22 | Gold | Female | Non Specified - Dual Edge | Floating Bobbin Flush Mount | Cantilever | Copper Alloy | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Dual | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 0.116 in | 2.95 mm | 10 Áin | 0.25 Ám | Panel Mount Through Hole | |
EDAC Inc. | 1 | Solder | 22 | Gold | Female | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Copper Alloy | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Dual | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Panel Mount Through Hole | Card Guides | ||
EDAC Inc. | 1 | Solder Eyelet(s) | 22 | Gold | Female | Non Specified - Dual Edge | Floating Bobbin Flush Mount | Cantilever | Copper Alloy | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Dual | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 0.116 in | 2.95 mm | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 1 | Solder | 22 | Gold | Female | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Cantilever | Copper Alloy | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Dual | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 0.128 " | 3.25 mm | 10 Áin | 0.25 Ám | Through Hole | |
EDAC Inc. | 1 | Solder Eyelet(s) | 22 | Gold | Female | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Copper Alloy | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Dual | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Card Guides | |||
EDAC Inc. | 1 | Solder | 22 | Tin | Female | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Cantilever | Copper Alloy | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Dual | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 0.156 in | 3.96 mm | Panel Mount Through Hole | |||
EDAC Inc. | 1 | Solder Eyelet(s) | 22 | Tin | Female | Non Specified - Dual Edge | Cantilever | Copper Alloy | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Dual | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | Free Hanging (In-Line) | ||||||
EDAC Inc. | 1 | Solder Eyelet(s) | 22 | Gold | Female | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Copper Alloy | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Dual | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 10 Áin | 0.25 Ám | Card Guides | |||
EDAC Inc. | 1 | Solder | 22 | Tin | Female | Non Specified - Dual Edge | Floating Bobbin Flush Mount | Cantilever | Copper Alloy | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Dual | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 0.116 in | 2.95 mm | Panel Mount Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 16.31 | |
Description
General part information
356-022 Series
44 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
