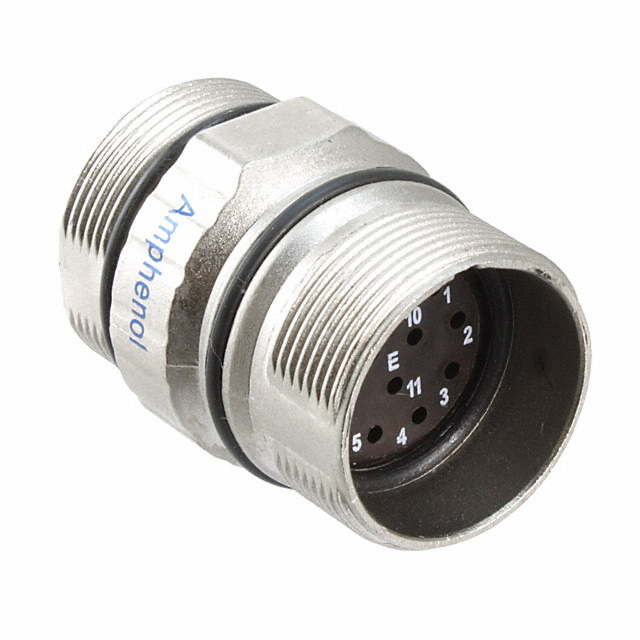

MA1JAE1200

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG F/M 12POS INLINE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG F/M 12POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	MA1JAE1200

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	E
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-12
Shielding	Shielded
Type	For Female Sockets or Male Pins

Part	Material Flammability Rating	Orientation	Contact Size	Shell Material	Shell Size - Insert	Connector Type	Contact Type	Shielding	Contact Shape	Shell Finish	Ingress Protection	Type	Mounting Type	Insert Material	Number of Positions	Note	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol Sine Systems Corp MA1JAE1200	UL94 V-0	E	1 mm	Zinc Die Cast	M23-12	Receptacle Housing	Crimp	Shielded	Circular	Nickel	IP67 - Dust Tight Waterproof	For Female Sockets or Male Pins	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	12	Contacts Not Included	Silver	-20 C	130 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 11.83

General part information

12 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
