101130NP

Active

LAPP

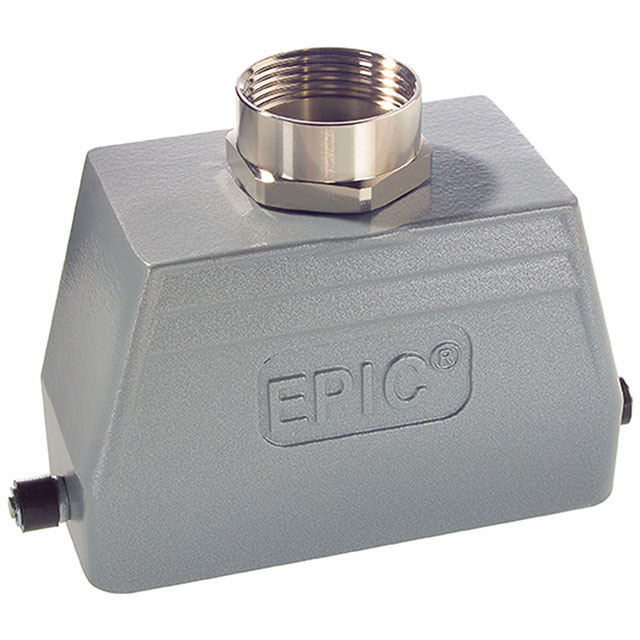

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, ALUMINUM ALLOY BODY, 2 LEVER, 24B

Search across all available documentation for this part.

Active

LAPP

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, ALUMINUM ALLOY BODY, 2 LEVER, 24B

Technical Specifications

Parameters and characteristics for this part

Specification	101130NP

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HB24
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	2.402 "
Size / Dimension [z]	61 mm
Style	Side Entry
Thread Size	NPT-3/4

Part	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Lock Location	Housing Color	Connector Type	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Material	Thread Size	Ingress Protection
LAPP 101130NP	Side Entry	120 mm	2.402 "	43 mm	1.693 in	4.724 "	61 mm	Locking Clip (2) on Base Bottom	Gray	Hood	Powder Coated	125 °C	-40 °C	HB24	Aluminum Alloy	NPT-3/4	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry NPT-3/4 HB24 IP65 - Dust Tight, Water Resistant
