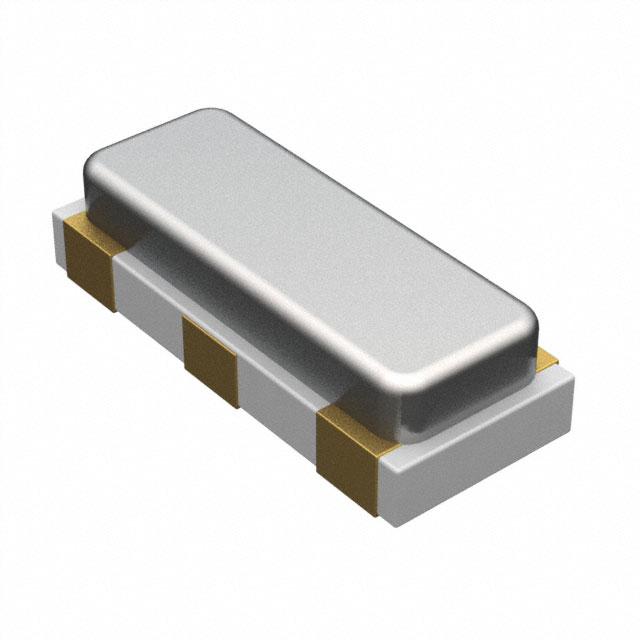

CSTNE8M38G520000R0

Active

Murata Power Solutions Inc.

RESONATOR CER 0.5% 10PF SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CSTNE8M38G520000R0

Active

Murata Power Solutions Inc.

RESONATOR CER 0.5% 10PF SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CSTNE8M38G520000R0

Capacitance	10 pF
Features	Built in Capacitor
Frequency	8.388 MHz
Frequency Tolerance	0.5 %
Height [z]	0.031 "
Height [z]	0.8 mm
Impedance	40 Ohms
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SMD, Non-Standard
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	0.051 "
Size / Dimension [y]	1.3 mm
Type	Ceramic

CSTNE Series

Part	Features	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Impedance	Height [z]	Height [z]	Mounting Type	Frequency Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Frequency	Type	Frequency Stability
Murata Power Solutions Inc. CSTNE16M9V53L00ZR0	Built in Capacitor	3-SMD Non-Standard	0.051 "	3.2 mm	1.3 mm	0.126 in	40 Ohms	0.039 in	1 mm	Surface Mount	0.5 %	125 °C	-40 °C	15 pF	16.934 MHz	Ceramic
Murata Power Solutions Inc. CSTNE16M0V510000R0	Built in Capacitor	3-SMD Non-Standard	0.051 "	3.2 mm	1.3 mm	0.126 in		0.032 in	0.8 mm	Surface Mount	0.5 %	85 °C	-40 °C	5 pF	16 MHz	Ceramic	0.3 %
Murata Power Solutions Inc. CSTNE16M3V53L000R0	Built in Capacitor	3-SMD Non-Standard	0.051 "	3.2 mm	1.3 mm	0.126 in	40 Ohms	0.039 in	1 mm	Surface Mount	0.5 %	85 °C	-40 °C	15 pF	16.384 MHz	Ceramic
Murata Power Solutions Inc. CSTNE10M0G52A000R0	Built in Capacitor	3-SMD Non-Standard	0.051 "	3.2 mm	1.3 mm	0.126 in		0.032 in	0.8 mm	Surface Mount	0.5 %	125 °C	-40 °C	10 pF	10 MHz	Ceramic
Murata Power Solutions Inc. CSTNE12M0G520000R0	Built in Capacitor	3-SMD Non-Standard	0.051 "	3.2 mm	1.3 mm	0.126 in		0.032 in	0.8 mm	Surface Mount	0.5 %	85 °C	-40 °C	10 pF	12 MHz	Ceramic
Murata Power Solutions Inc. CSTNE14M3V53L000R0	Built in Capacitor	3-SMD Non-Standard	0.051 "	3.2 mm	1.3 mm	0.126 in	40 Ohms	0.039 in	1 mm	Surface Mount	0.5 %	85 °C	-40 °C	15 pF	14.318 MHz	Ceramic
Murata Power Solutions Inc. CSTNE19M2V53L000R0	Built in Capacitor	3-SMD Non-Standard	0.051 "	3.2 mm	1.3 mm	0.126 in	40 Ohms	0.039 in	1 mm	Surface Mount	0.5 %	85 °C	-40 °C	15 pF	19.2 MHz	Ceramic
Murata Power Solutions Inc. CSTNE8M38G520000R0	Built in Capacitor	3-SMD Non-Standard	0.051 "	3.2 mm	1.3 mm	0.126 in	40 Ohms	0.031 "	0.8 mm	Surface Mount	0.5 %	85 °C	-40 °C	10 pF	8.388 MHz	Ceramic
Murata Power Solutions Inc. CSTNE16M5V53L000R0	Built in Capacitor	3-SMD Non-Standard	0.051 "	3.2 mm	1.3 mm	0.126 in	40 Ohms	0.039 in	1 mm	Surface Mount	0.5 %	85 °C	-40 °C	15 pF	16.5 MHz	Ceramic
Murata Power Solutions Inc. CSTNE12M0G52A000R0	Built in Capacitor	3-SMD Non-Standard	0.051 "	3.2 mm	1.3 mm	0.126 in		0.032 in	0.8 mm	Surface Mount	0.5 %	125 °C	-40 °C	10 pF	12 MHz	Ceramic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.14

Description

General part information

CSTNE Series

8.388 MHz Ceramic Resonator Built in Capacitor 10 pF ±0.2% 40 Ohms -40°C ~ 85°C Surface Mount
