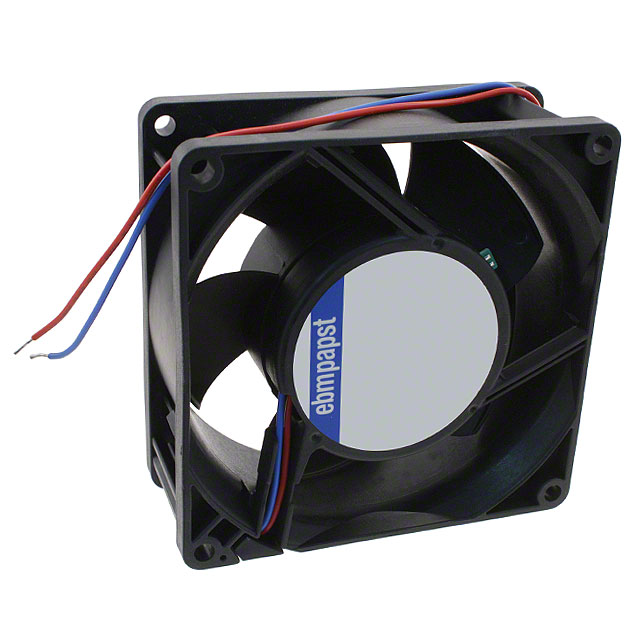

3214JN

Active

ebm-papst Inc.

FAN AXIAL 92X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCompact Fans for AC, DC, and EC Catalog Datasheet +2

3214JN

Active

ebm-papst Inc.

FAN AXIAL 92X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsCompact Fans for AC, DC, and EC Catalog Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3214JN

Air Flow	77 CFM
Air Flow	2.16 m³/min
Approval Agency	UL, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	51 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	8 W
RPM	6000 RPM
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	11 VDC
Weight	239.95 g
Weight	0.529 lb
Width [y]	38 mm

3214J Series

Part	Power (Watts)	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	RPM	Termination	Width [y]	Air Flow	Air Flow	Material - Frame	Lifetime @ Temp.	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Material - Blade	Approval Agency	Noise	Features	Current Rating (Amps)	Operating Temperature [Max]
ebm-papst Inc. 3214JN	8 W	Tubeaxial	28 VDC	11 VDC	Ball	6000 RPM	2 Wire Leads	38 mm	77 CFM	2.16 m³/min	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	70000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C	239.95 g	0.529 lb	Fiberglass Reinforced Nylon Polyamide (PA)	CSA UL VDE	51 dB(A)
ebm-papst Inc. 3214J/39NU	6.5 W	Tubeaxial	28 VDC	11 VDC	Ball	6000 RPM	3 Wire Leads	38 mm	76.5 CFM	2.14 mł/min	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	70000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C			Fiberglass Reinforced Nylon Polyamide (PA)		51 dB(A)	Alarm Sensor
ebm-papst Inc. 3214J/2H	9 W	Tubeaxial	30 V	12 VDC	Ball	6800 RPM	3 Wire Leads	38 mm	86 CFM	2.41 m³/min	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	70000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C			Fiberglass Reinforced Nylon Polyamide (PA)		55 dB	Speed Sensor (Tach)
ebm-papst Inc. 3214J/2H4P	50 W	Tubeaxial	27.6 VDC	12 VDC	Ball	13000 RPM	4 Wire Leads	38 mm	165 CFM	4.62 mł/min	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C	281.23 g	0.62 lb	Fiberglass Reinforced Nylon Polyamide (PA)	CE CSA EAC UL VDE	76 dB(A)	PWM Control Speed Sensor (Tach)	2 A
ebm-papst Inc. 3214JH3	30 W	Tubeaxial	27.6 VDC	12 VDC	Ball	11000 RPM	2 Wire Leads	38 mm	139.5 CFM	3.91 mł/min	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	65000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C	279.87 g	0.617 lb	Fiberglass Reinforced Nylon Polyamide (PA)	CSA UL VDE
ebm-papst Inc. 3214J/2H3F-191	28.3 W	Tubeaxial	26 VDC	20 VDC	Ball	10500 RPM	4 Wire Leads	38 mm	41.3 CFM	1.16 mł/min	Plastic	45000 Hrs	24 VDC	-20 °C		-20 C	55 °C	239.95 g	0.529 lb	Plastic	CE CSA UL		PWM Control Speed Sensor (Tach)	1.18 A	55 °C
ebm-papst Inc. 3214JH	9 W	Tubeaxial	30 V	11 VDC	Ball	6800 RPM	2 Wire Leads	38 mm	86 CFM	2.41 m³/min	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	70000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C	239.95 g	0.529 lb	Fiberglass Reinforced Nylon Polyamide (PA)	CSA UL VDE	55 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 56.67
		10	$ 51.28
		25	$ 47.90
		50	$ 47.23
		100	$ 43.52

Description

General part information

3214J Series

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 77.0 CFM (2.16m³/min) 2 Wire Leads
