TXR40AB90-1408AI

Active

TE Connectivity Aerospace, Defense and Marine

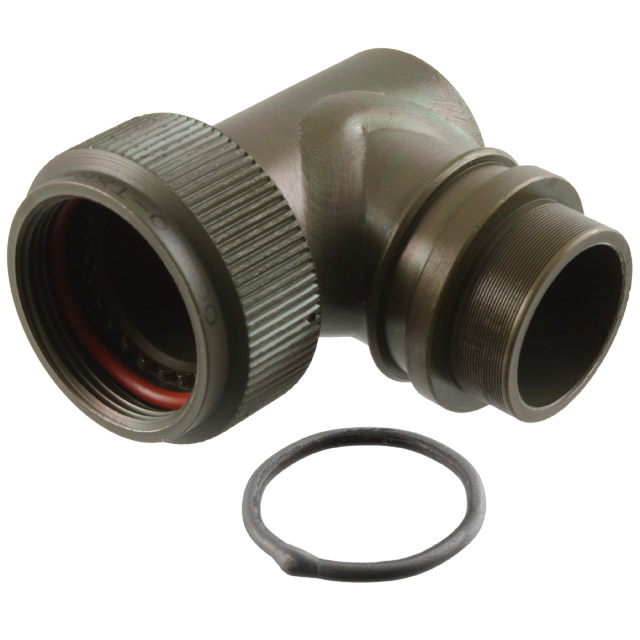

CONN BACKSHELL ADPT SZ15 D M22

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TXR40AB90-1408AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZ15 D M22

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TXR40AB90-1408AI

Cable Exit	90 °
Color	Olive Drab
Diameter - Outside [diameter]	1.142 in
Diameter - Outside [diameter]	29 mm
Features	Tinel Lock
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs
Ingress Protection	Environment Resistant
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	15
Shell Size - Insert	D
Shielding	Shielded
Type	Backshell, Heat Shrink Adapter

TXR40AB90 Series

Part	Plating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	For Use With/Related Products	Includes	Shell Size - Insert	Shell Size - Insert	Material	Shielding	Color	Cable Exit	Features	Type	Ingress Protection	Includes	Diameter - Outside [diameter]	Thread Size	Shell Size - Insert [custom]	Shell Size - Insert [custom]
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1408AI	Cadmium	1.142 in	29 mm	MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs	15	D	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell Heat Shrink Adapter	Environment Resistant
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1416AI	Cadmium	1.142 in	29 mm	MIL-DTL-38999 Series III IV		15	D	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell Heat Shrink Adapter	Environment Resistant	1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell
TE Connectivity Aerospace, Defense and Marine TXR40AB90-2214AI2	Cadmium	40 mm		MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs	23	H	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell Heat Shrink Adapter	Environment Resistant		1.575 in	M34x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1408BI-CS2261	Cadmium	1.142 in	29 mm	MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs	15	D	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell Heat Shrink Adapter	Environment Resistant
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1007AI	Cadmium	21 mm		MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs	11	B	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell Heat Shrink Adapter	Environment Resistant		0.827 in	M15x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1607AI	Cadmium	32.49 mm		MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs		17 E	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell Heat Shrink Adapter	Environment Resistant		1.279 in	M25x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-0804AI	Cadmium	18 mm		MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs			Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell Heat Shrink Adapter	Environment Resistant		0.709 in	M12x1	9	A
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1006AI	Cadmium	21 mm		MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs	11	B	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell Heat Shrink Adapter	Environment Resistant		0.827 in	M15x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1004AI	Cadmium	21 mm		MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs	11	B	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell Heat Shrink Adapter	Environment Resistant		0.827 in	M15x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1808AI	Cadmium	35.5 mm		MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs	19	F	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell Heat Shrink Adapter	Environment Resistant		1.398 in	M28x1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 128.18
		10	$ 99.93
		25	$ 91.00
		50	$ 84.98
		100	$ 79.54

Description

General part information

TXR40AB90 Series

Olive Drab Connector Backshell, Heat Shrink Adapter M22x1 15, D
