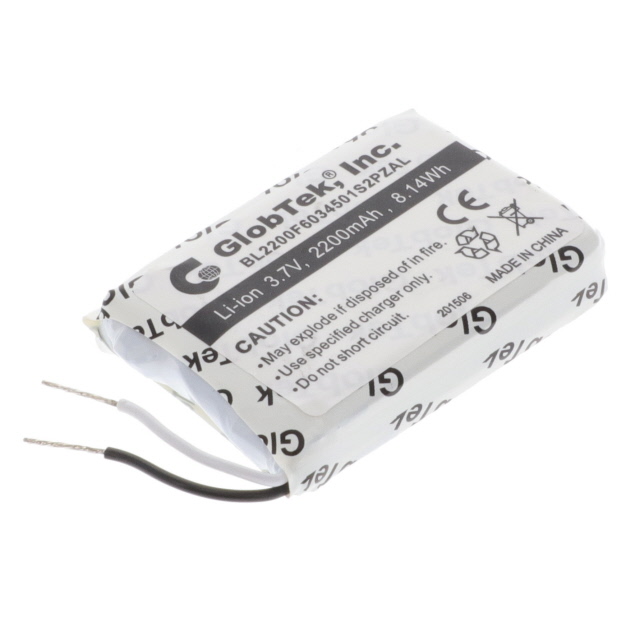

BL2200F6034501S2PZAL

Active

GlobTek, Inc.

BATTERY LITH-ION 3.7V 2AH 603450

Search across all available documentation for this part.

Active

GlobTek, Inc.

BATTERY LITH-ION 3.7V 2AH 603450

Technical Specifications

Parameters and characteristics for this part

Specification	BL2200F6034501S2PZAL

Battery Cell Size	603450
Battery Chemistry	Lithium-Ion
Capacity	2 Ah
Discharge Rate	2 A
Shipping Info	Due to restrictions, only ground shipment is allowed.
Size / Dimension [x]	2.09 in
Size / Dimension [x]	53 mm
Size / Dimension [y]	1.36 "
Size / Dimension [y]	34.5 mm
Size / Dimension [z]	13 mm
Size / Dimension [z]	0.51 in
Standard Charge Current	1 A
Standard Charge Time	2.5 hrs
Termination Style	Wire Leads
Voltage - Rated	3.7 V

Part	Capacity	Shipping Info	Battery Cell Size	Voltage - Rated	Standard Charge Current	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Discharge Rate	Battery Chemistry	Termination Style	Standard Charge Time
GlobTek, Inc. BL2200F6034501S2PZAL	2 Ah	Due to restrictions only ground shipment is allowed.	603450	3.7 V	1 A	13 mm	2.09 in	53 mm	1.36 "	0.51 in	34.5 mm	2 A	Lithium-Ion	Wire Leads	2.5 hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

603450 3.7 V Lithium-Ion Battery Rechargeable (Secondary) 2Ah

Technical documentation and resources
