1064593

Active

SICK, Inc.

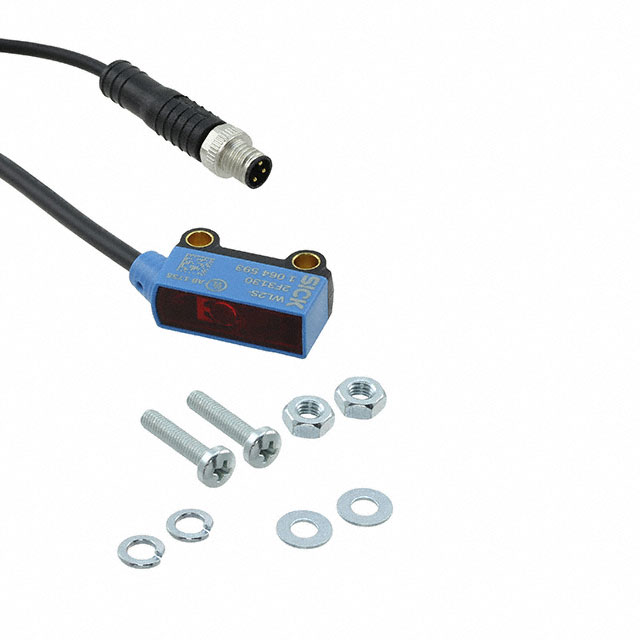

SENSOR RETROREFLECTIVE 550MM PNP

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR RETROREFLECTIVE 550MM PNP

Technical Specifications

Parameters and characteristics for this part

Specification	1064593

Connection Method	M8, 3POS, Cable with Connector
Ingress Protection	IP67
Light Source	Red LED
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	500 µs
Sensing Distance [Max]	55 cm
Sensing Distance [Max]	21.654 in
Sensing Distance [Min]	0 mm
Sensing Distance [Min]	0 "
Sensing Method	Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Connection Method	Ingress Protection	Response Time	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance	Sensing Distance	Cable Length	Cable Length	Light Source
SICK, Inc. 1064593	Retroreflective	30 VDC	10 VDC	Red LED	50 °C	-25 °C	PNP - Dark-ON/Light-ON - Selectable	3POS Cable with Connector M8	IP67	500 µs	55 cm	0 mm	21.654 in	0 "
SICK, Inc. 1064592	Retroreflective	30 VDC	10 VDC	Red			PNP	Cable with Connector	IP67	500 µs					47.244 in	120 cm	0.2 m	7.87 in	640 nm
SICK, Inc. 1064595	Retroreflective	30 VDC	10 VDC	Red			NPN	Cable	IP67	500 µs					47.244 in	120 cm	2 m	78.74 in	640 nm
SICK, Inc. 1064596	Retroreflective	30 VDC	10 VDC	Red			NPN	Cable	IP67	500 µs					47.244 in	120 cm	2 m	78.74 in	640 nm
SICK, Inc. WL2S-2N1130	Retroreflective	30 VDC	10 VDC	Red			NPN	Cable	IP67	500 µs					47.244 in	120 cm	2 m	78.74 in	640 nm
SICK, Inc. 1064590	Retroreflective	30 VDC	10 VDC	Red			PNP	Cable	IP67	500 µs					47.244 in	120 cm	2 m	78.74 in	640 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Retroreflective Optical Sensor 0.000" ~ 21.654" (0mm ~ 550mm) PNP - Dark-ON/Light-ON - Selectable
