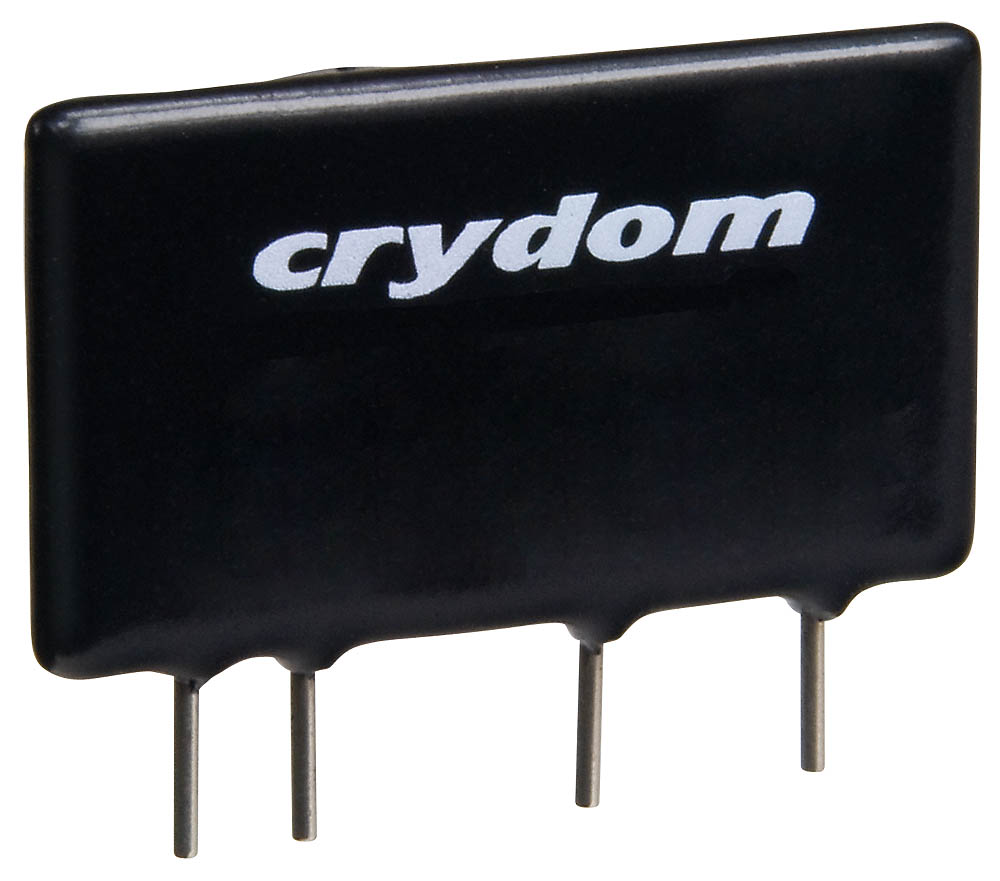

CMXE60D10
ActiveSensata-Crydom
SSR RELAY SPST-NO 10A 0-60V
Deep-Dive with AI
Search across all available documentation for this part.
CMXE60D10
ActiveSensata-Crydom
SSR RELAY SPST-NO 10A 0-60V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CMXE60D10 |
|---|---|
| Approval Agency | CE, cURus |
| Load Current | 10 A |
| Mounting Type | Through Hole |
| On-State Resistance (Max) [Max] | 18 mOhms |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -10 °C |
| Output Type | DC |
| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIP |
| Termination Style | PC Pin |
| Voltage - Input [Max] | 28 V |
| Voltage - Input [Min] | 20 VDC |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.20 | |
| 10 | $ 48.76 | |||
| 50 | $ 46.55 | |||
| 100 | $ 45.18 | |||
Description
General part information
CMXE60 Series
Solid State SPST-NO (1 Form A) 4-SIP
