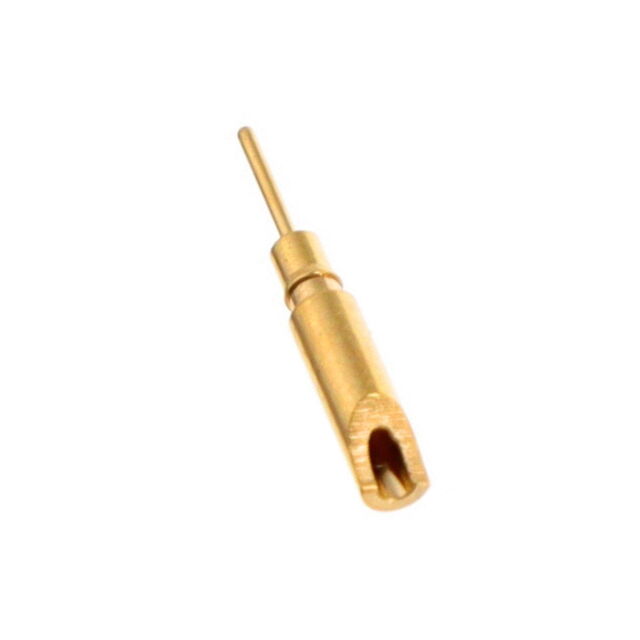

0275-0-01-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.020DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
0275-0-01-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.020DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0275-0-01-21-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Phosphor Bronze |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 6.58 mm |
| Length - Above Flange [x] | 0.259 in |
| Length - Overall [x] | 12.47 mm |
| Length - Overall [x] | 0.491 in |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.51 mm |
| Pin Size - Above Flange [diameter] | 0.02 in |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.57 | |
| 10 | $ 1.37 | |||
| 25 | $ 1.31 | |||
| 50 | $ 1.28 | |||
| 100 | $ 1.22 | |||
| 250 | $ 1.11 | |||
| 500 | $ 1.02 | |||
| 1000 | $ 0.87 | |||
| 3000 | $ 0.82 | |||
Description
General part information
0275-0 Series
PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia
Documents
Technical documentation and resources
No documents available
