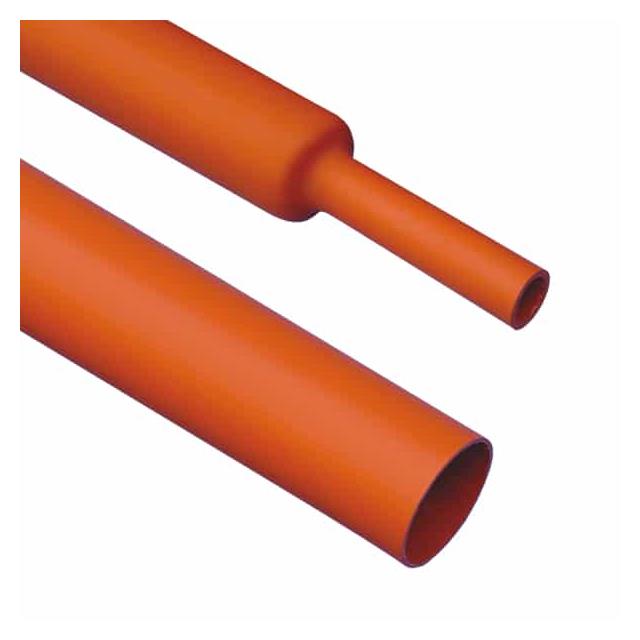

QAT-40/12-QB48IN-5

Active

Qualtek

HEATSHRINK 40/12MM-48" 1=5PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 40/12MM-48" 1=5PC

Technical Specifications

Parameters and characteristics for this part

Specification	QAT-40/12-QB48IN-5

Color	Orange-Red
Features	Creep Resistant, Anti-Tracking
Inner Diameter - Recovered [diameter]	0.472 in
Inner Diameter - Recovered [diameter]	12 mm
Inner Diameter - Supplied [diameter]	1.575 "
Inner Diameter - Supplied [diameter]	40.01 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO), Irradiated, Halogen Free
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	3 mm
Recovered Wall Thickness	0.118 in
Shelf Life	144 Months
Shrink Temperature	110 °C
Shrinkage Ratio [Max]	2.5
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Insulation

Part	Shrinkage Ratio [Max]	Shrinkage Ratio [Min]	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Shrink Temperature	Type	Recovered Wall Thickness	Recovered Wall Thickness	Color	Shelf Life	Material
Qualtek QAT-40/12-QB48IN-5	2.5	1	Anti-Tracking Creep Resistant	1.575 "	40.01 mm	-50 °F -10 °C	40 °C	0.472 in	12 mm	105 ░C	-55 °C	1.22 m	4 ft	110 °C	Tubing Insulation	3 mm	0.118 in	Orange-Red	144 Months	Polyolefin (PO) Irradiated Halogen Free

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Insulation 1.575" (40.01mm) 2.5 to 1 Orange-Red 4.00' (1.22m)
