SIT2018BELS8-33N-12.000000_6
ActiveSiTime
MEMS OSC XO 12.0000MHZ LVCMOS
Deep-Dive with AI
Search across all available documentation for this part.
SIT2018BELS8-33N-12.000000_6
ActiveSiTime
MEMS OSC XO 12.0000MHZ LVCMOS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIT2018BELS8-33N-12.000000_6 |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Max) | 4.7 mA |
| Frequency | 12 MHz |
| Frequency Stability | 30 ppm |
| Height - Seated (Max) [Max] | 1.45 mm |
| Height - Seated (Max) [Max] | 0.057 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output | LVCMOS, LVTTL |

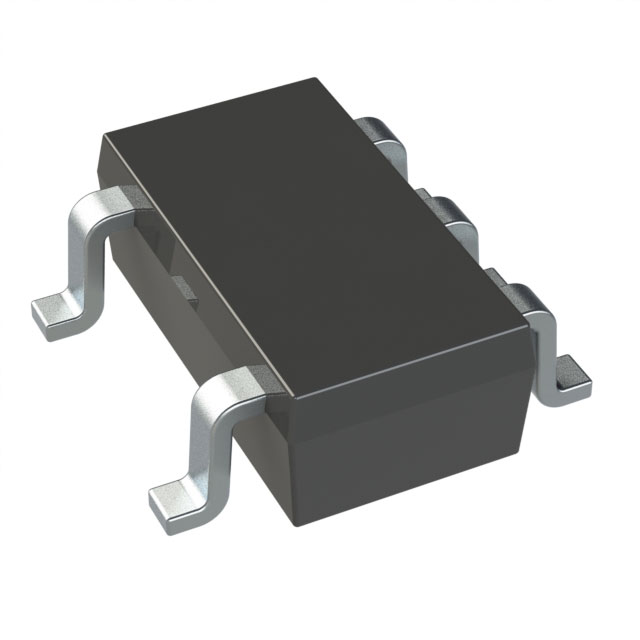

| Package / Case | SC-74A, SOT-753 |
| Size / Dimension [x] | 0.114 in |
| Size / Dimension [x] | 2.9 mm |
| Size / Dimension [y] | 1.6 mm |
| Size / Dimension [y] | 0.063 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 2.24 | |
| 10 | $ 2.19 | |||
| 50 | $ 2.08 | |||
| 100 | $ 1.82 | |||
| 500 | $ 1.77 | |||
| 1000 | $ 1.51 | |||
| 2500 | $ 1.41 | |||
| 5000 | $ 1.35 | |||
Description
General part information
SIT2018 Series
12 MHz XO (Standard) LVCMOS, LVTTL Oscillator 3.3V SC-74A, SOT-753
Documents
Technical documentation and resources
No documents available
