C3BBG-2606G

Active

CW Industries

IDC CABLE - CSR26G/AE26G/CSR26G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSR26G/AE26G/CSR26G

Technical Specifications

Parameters and characteristics for this part

Part	Features	Cable Termination	Connector Type	Pitch - Cable	Pitch - Cable	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Shielding	Pitch - Connector	Pitch - Connector	Length	Length	Length	Number of Positions	Number of Rows	Length [x]	Length [x]	Color
CW Industries C3BBG-2006G	Strain Relief	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	20	2
CW Industries C3BBG-2618G	Strain Relief	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm				26	2	457.2 mm	1.5 ft
CW Industries C3BBG-2606G	Strain Relief	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	26	2
CW Industries C3BBG-2036G	Strain Relief	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm				20	2	914.4 mm	3 ft
CW Industries C3BBG-2006M	Strain Relief	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	20	2			Multiple Ribbon
CW Industries C3BBG-2636G	Strain Relief	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm				26	2	914.4 mm	3 ft
CW Industries C3BBG-2036M	Strain Relief	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm				20	2	914.4 mm	3 ft	Multiple Ribbon
CW Industries C3BBG-2018M	Strain Relief	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm				20	2	457.2 mm	1.5 ft	Multiple Ribbon
CW Industries C3BBG-2018G	Strain Relief	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm				20	2	457.2 mm	1.5 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

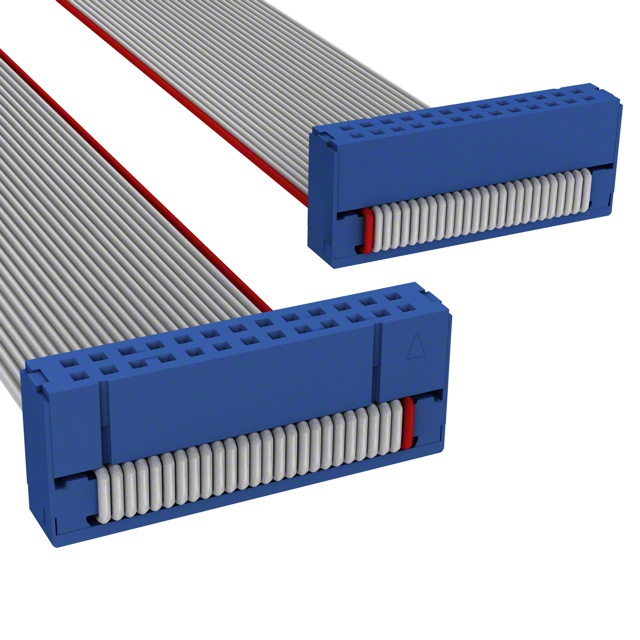

26 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
