OP237AJ

Obsolete

Analog Devices

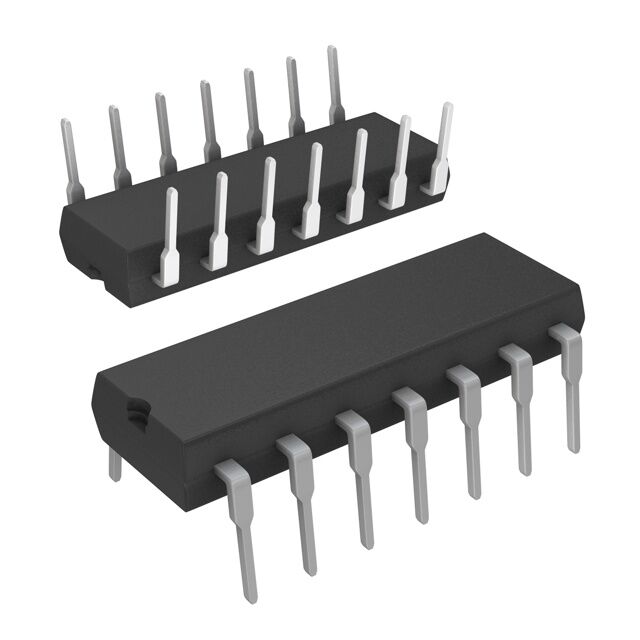

IC OPAMP GP 2 CIRCUIT 14CERDIP

Search across all available documentation for this part.

Obsolete

Analog Devices

IC OPAMP GP 2 CIRCUIT 14CERDIP

Technical Specifications

Parameters and characteristics for this part

Part	Amplifier Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Gain Bandwidth Product	Voltage - Supply Span (Min) [Min]	Number of Circuits	Voltage - Supply Span (Max) [Max]	Voltage - Input Offset	Slew Rate	Supplier Device Package	Current - Input Bias	Mounting Type	Package / Case [y]	Package / Case [x]
Analog Devices OP237AJ	General Purpose	-55 °C	125 °C	14-CDIP	63 MHz	8 V	2	36 V	20 çV	15 V/µs	14-CerDIP	10 nA	Through Hole
Analog Devices OP237EN#PBF	General Purpose	-25 °C	85 °C	14-DIP	63 MHz	8 V	2	36 V	20 çV	15 V/µs		10 nA	Through Hole	7.62 mm	0.3 "
Analog Devices OP237GN#PBF	General Purpose	-25 °C	85 °C	14-DIP	63 MHz	8 V	2	36 V	60 µV	15 V/µs		15 nA	Through Hole	7.62 mm	0.3 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Amplifier 2 Circuit 14-CERDIP

Technical documentation and resources
