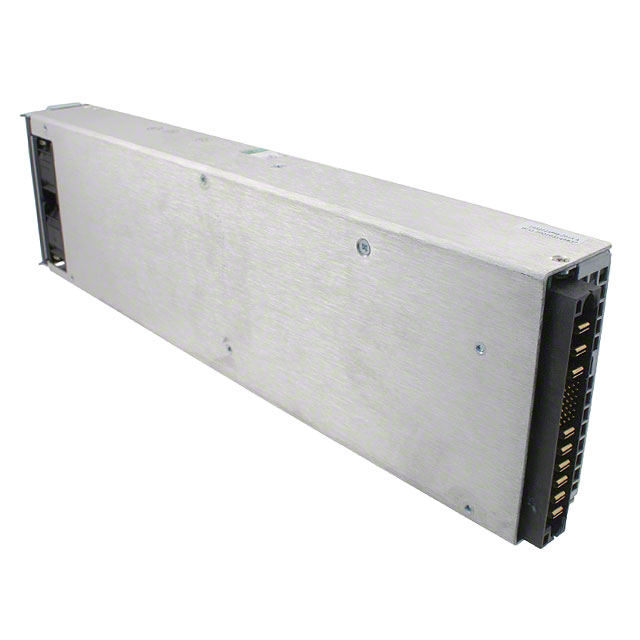

CAR2024FPB-Z01A

Active

OmniOn Power™

AC/DC CONVERTER 24V 2000W

Search across all available documentation for this part.

Active

OmniOn Power™

AC/DC CONVERTER 24V 2000W

Technical Specifications

Parameters and characteristics for this part

Specification	CAR2024FPB-Z01A

Applications	ITE (Commercial)
Current - Output 1 [custom]	83 A
Efficiency	90 %
Features	Load Sharing, PMBus™, Universal Input, Standby Output, Remote Sense, Adjustable Output, PFC, Hot Swappable, I2C Interface
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2000 W
Size / Dimension [x]	14.25 in
Size / Dimension [x]	362 mm
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	41.9 mm
Size / Dimension [z]	1.65 "
Type	Front End
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Voltage - Output 1	Current - Output 1 [custom]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Minimum Load Required	Features	Applications	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Number of Outputs	Power (Watts)
OmniOn Power™ CAR2024FPB-Z01A	24 V	83 A	90 %	-10 °C	70 °C	3000 V		Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	ITE (Commercial)	Front End	14.25 in	41.9 mm	362 mm	1.65 "	4 "	101.6 mm	Rack Mount	1	2000 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 759.00

General part information

Front End AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
