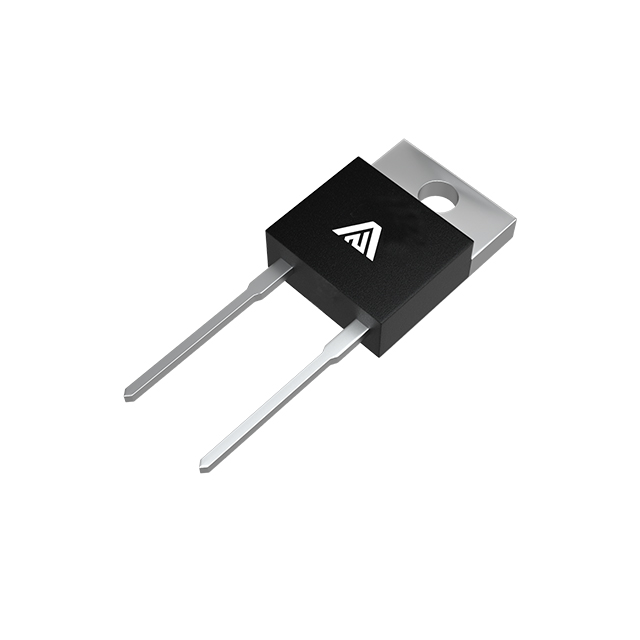

AS3D020065A

Active

ANBON SEMICONDUCTOR (INT'L) LIMITED

650V,20A SILICON CARBIDE SCHOTTK

Search across all available documentation for this part.

Active

ANBON SEMICONDUCTOR (INT'L) LIMITED

650V,20A SILICON CARBIDE SCHOTTK

Technical Specifications

Parameters and characteristics for this part

Specification	AS3D020065A

Capacitance @ Vr, F	1190 pF
Current - Average Rectified (Io)	56 A
Current - Reverse Leakage @ Vr	20 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-220-2
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-220-2
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V
Voltage - Forward (Vf) (Max) @ If	1.65 V

Part	Technology	Supplier Device Package	Capacitance @ Vr, F	Mounting Type	Package / Case	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)
ANBON SEMICONDUCTOR (INT'L) LIMITED AS3D020065A	SiC (Silicon Carbide) Schottky	TO-220-2	1190 pF	Through Hole	TO-220-2	No Recovery Time	650 V	0 ns	20 µA	1.65 V	175 ░C	-55 C	56 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 650 V 56A Through Hole TO-220-2
