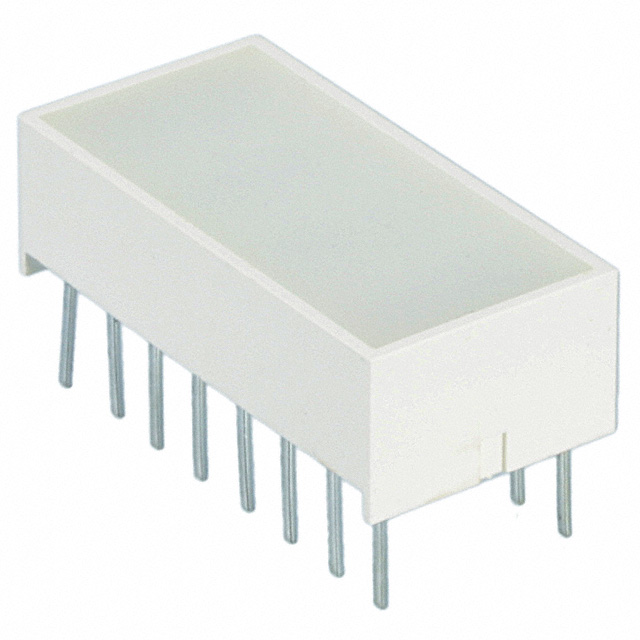

KB2685EW
ActiveKingbright
LED LGT BAR 19.05X8.89MM RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KB2685EW
ActiveKingbright
LED LGT BAR 19.05X8.89MM RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KB2685EW |
|---|---|
| Color | Red |
| Configuration | DIP, Bar - Single |
| Current | 30 mA |
| Lens Size [x] | 19.05 mm |
| Lens Size [y] | 8.89 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Type | Diffused, White |
| Millicandela Rating | 40 mcd |
| Mounting Type | Through Hole |
| Voltage Rating | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.43 | |
| 25 | $ 2.28 | |||
| 100 | $ 1.76 | |||
| 500 | $ 1.59 | |||
| 1000 | $ 1.37 | |||
| 2000 | $ 1.29 | |||
| 5000 | $ 1.26 | |||
Description
General part information
KB2685 Series
LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Red Diffused, White 2V 30mA Rectangle with Flat Top 19.05mm x 8.89mm Through Hole
