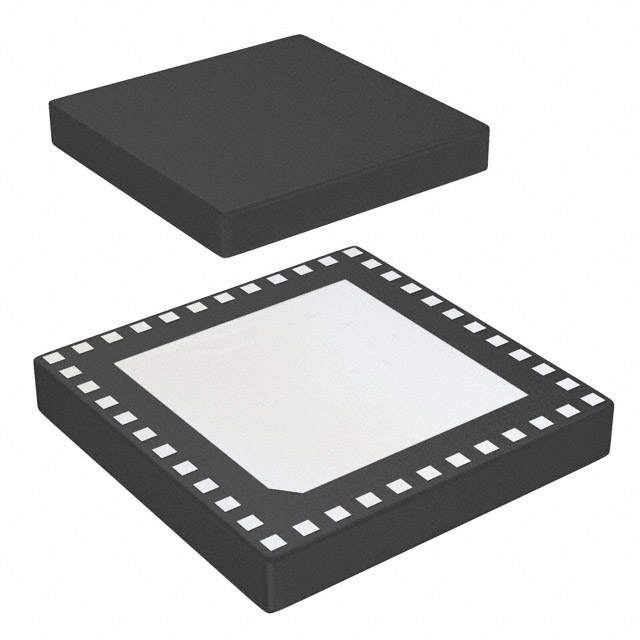

DSPIC33FJ16GS504T-I/TL
ActiveMicrochip Technology
IC MCU 16BIT 16KB FLASH 44VTLA
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC33FJ16GS504T-I/TL
ActiveMicrochip Technology
IC MCU 16BIT 16KB FLASH 44VTLA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSPIC33FJ16GS504T-I/TL |
|---|---|
| Connectivity | LINbus, I2C, IrDA, SPI, UART/USART |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Data Converters | 24x10b, 4x10b |
| Mounting Type | Surface Mount |
| Number of I/O | 35 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 44-VFTLA Exposed Pad |
| Program Memory Size | 16 KB |
| Program Memory Type | FLASH |
| RAM Size | 2K x 8 |
| Speed | 40 MIPs |
| Supplier Device Package | 44-VTLA (6x6) |
dsPIC33FJ16GS504 Series
High-Speed PWM, ADC and Comparators
| Part | Oscillator Type | Program Memory Type | Operating Temperature [Max] | Operating Temperature [Min] | Program Memory Size | Mounting Type | Core Processor | Connectivity | Package / Case | Number of I/O | Supplier Device Package | RAM Size | Speed | Core Size | Data Converters | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology | Internal | FLASH | 85 °C | -40 °C | 16 KB | Surface Mount | dsPIC | I2C IrDA LINbus SPI UART/USART | 44-VQFN Exposed Pad | 35 | 44-QFN (8x8) | 2K x 8 | 40 MIPs | 16-Bit | 24x10b 4x10b | ||
Microchip Technology | Internal | FLASH | 85 °C | -40 °C | 16 KB | Surface Mount | dsPIC | I2C IrDA LINbus SPI UART/USART | 44-VFTLA Exposed Pad | 35 | 44-VTLA (6x6) | 2K x 8 | 40 MIPs | 16-Bit | 24x10b 4x10b | ||
Microchip Technology | Internal | FLASH | 85 °C | -40 °C | 16 KB | Surface Mount | dsPIC | I2C IrDA LINbus SPI UART/USART | 44-VFTLA Exposed Pad | 35 | 44-VTLA (6x6) | 2K x 8 | 40 MIPs | 16-Bit | 24x10b 4x10b | ||
Microchip Technology | Internal | FLASH | 125 °C | -40 °C | 16 KB | Surface Mount | dsPIC | I2C IrDA LINbus SPI UART/USART | 44-VQFN Exposed Pad | 35 | 44-QFN (8x8) | 2K x 8 | 40 MIPs | 16-Bit | 24x10b 4x10b | Automotive | AEC-Q100 |
Microchip Technology | Internal | FLASH | 85 °C | -40 °C | 16 KB | Surface Mount | dsPIC | I2C IrDA LINbus SPI UART/USART | 44-TQFP | 35 | 44-TQFP (10x10) | 2K x 8 | 16-Bit | 24x10b 4x10b | |||
Microchip Technology | Internal | FLASH | 125 °C | -40 °C | 16 KB | Surface Mount | dsPIC | I2C IrDA LINbus SPI UART/USART | 44-VFTLA Exposed Pad | 35 | 44-VTLA (6x6) | 2K x 8 | 40 MIPs | 16-Bit | 24x10b 4x10b | Automotive | AEC-Q100 |
Microchip Technology | Internal | FLASH | 85 °C | -40 °C | 16 KB | Surface Mount | dsPIC | I2C IrDA LINbus SPI UART/USART | 44-VQFN Exposed Pad | 35 | 44-QFN (8x8) | 2K x 8 | 40 MIPs | 16-Bit | 24x10b 4x10b | ||
Microchip Technology | Internal | FLASH | 125 °C | -40 °C | 16 KB | Surface Mount | dsPIC | I2C IrDA LINbus SPI UART/USART | 44-TQFP | 35 | 44-TQFP (10x10) | 2K x 8 | 40 MIPs | 16-Bit | 24x10b 4x10b | Automotive | AEC-Q100 |
Microchip Technology | Internal | FLASH | 85 °C | -40 °C | 16 KB | Surface Mount | dsPIC | I2C IrDA LINbus SPI UART/USART | 44-TQFP | 35 | 44-TQFP (10x10) | 2K x 8 | 16-Bit | 24x10b 4x10b | |||
Microchip Technology | Internal | FLASH | 85 °C | -40 °C | 16 KB | Surface Mount | dsPIC | I2C IrDA LINbus SPI UART/USART | 44-TQFP | 35 | 44-TQFP (10x10) | 2K x 8 | 40 MIPs | 16-Bit | 24x10b 4x10b |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
dsPIC33FJ16GS504 Series
These devices offer features supporting common, multi-loop digital switch-mode power supplies (SMPS) and other digital power-conversion applications such as: AC to DC Converters, DC to DC Converters, Power Factor Correction (PFC), Uninterruptible power supply (UPS), Inverters, Embedded Power-Supply Controllers, Circuit Breakers, Arc Fault Detection
Documents
Technical documentation and resources
