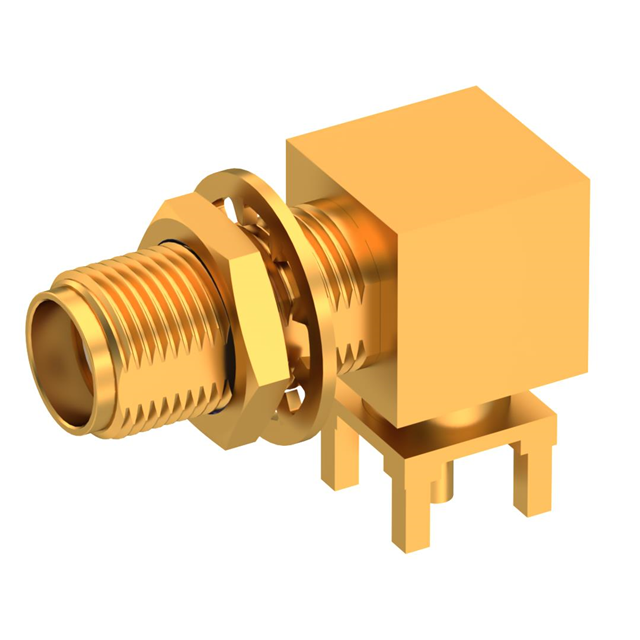

9652-1513-003

Active

Radiall USA, Inc.

SMA F RA BHD TAB

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA F RA BHD TAB

Technical Specifications

Parameters and characteristics for this part

Specification	9652-1513-003

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Contact Termination	Impedance	Center Contact Material	Mounting Feature	Center Contact Plating	Body Material	Mating Cycles	Mounting Type	Connector Style	Body Finish	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Dielectric Material	Frequency - Max [Max]	Shield Termination	Connector Type	Housing Color
Radiall USA, Inc. 9652-1513-003	Solder	50 Ohms	Beryllium Copper	Bulkhead - Front Side Nut	Gold	Stainless Steel	500	Panel Mount Right Angle Through Hole	SMA	Gold	1 Connector 1 Lockwasher 1 Nut	-65 ░C	165 °C	1	Polytetrafluoroethylene (PTFE)	18 GHz	Solder	Female Socket Jack	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
