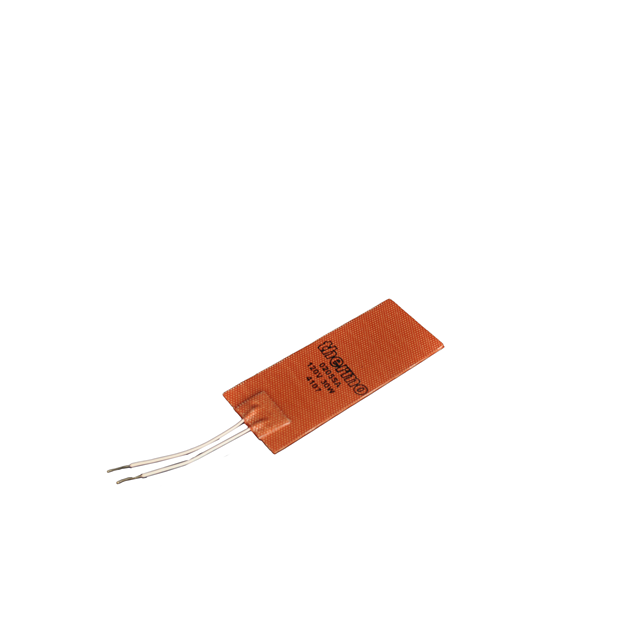

DK0112SA

Active

Thermo Heating Elements

1.0 X 12.0 IN. SILICONE RUBBER H

Search across all available documentation for this part.

Active

Thermo Heating Elements

1.0 X 12.0 IN. SILICONE RUBBER H

Technical Specifications

Parameters and characteristics for this part

Specification	DK0112SA

Attachment Method	Pressure Sensitive Adhesive (PSA)
Color	Black
Length - Lead Wire [x]	12 in
Length - Lead Wire [x]	304.8 mm
Length [x]	1 in
Length [x]	25.4 mm
Material	Silicone Rubber
Material - Insulation	Polytetrafluoroethylene (PTFE)
Power (Watts)	24 W
Resistance	24 Ohms
Shape	Rectangular
Temperature Rating	428 °F
Temperature Rating	220 °C
Termination	Wire Leads
Watt Density @ 12V	2 W/in²
Width	304.8 mm
Width [x]	12 in
Wire Gauge	20 AWG

Part	Resistance	Attachment Method	Material	Termination	Length [x]	Length [x]	Temperature Rating	Temperature Rating	Power (Watts)	Material - Insulation	Width	Width [x]	Wire Gauge	Color	Shape	Length - Lead Wire [x]	Length - Lead Wire [x]	Watt Density @ 12V
Thermo Heating Elements DK0112SA	24 Ohms	Pressure Sensitive Adhesive (PSA)	Silicone Rubber	Wire Leads	1 in	25.4 mm	428 °F	220 °C	24 W	Polytetrafluoroethylene (PTFE)	304.8 mm	12 in	20 AWG	Black	Rectangular	12 in	304.8 mm	2 W/in²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4	$ 63.95

General part information

1.0 X 12.0 IN. SILICONE RUBBER H

Technical documentation and resources

No documents available
