WM9713CLGEFL/V

Obsolete

Cirrus Logic Inc.

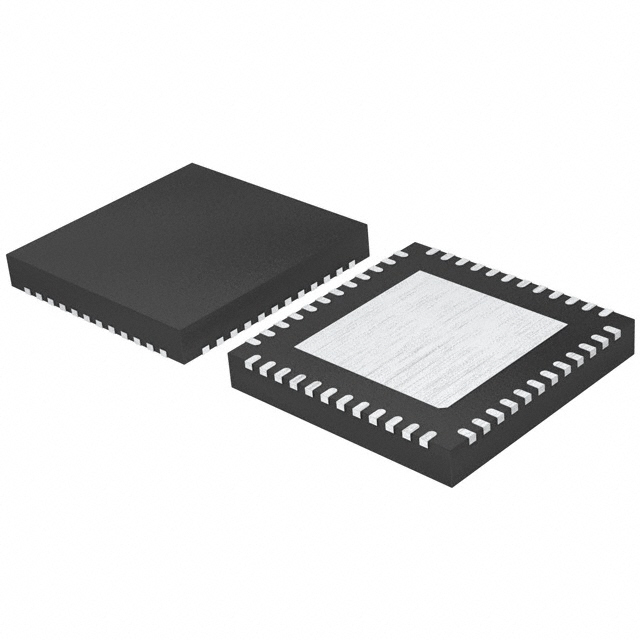

IC CODEC W/TOUCH CTLR 48QFN

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

IC CODEC W/TOUCH CTLR 48QFN

Technical Specifications

Parameters and characteristics for this part

Specification	WM9713CLGEFL/V

Data Interface	PCM, I2S
Mounting Type	Surface Mount
Number of ADCs / DACs [custom]	4
Number of ADCs / DACs [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	48-VFQFN Exposed Pad
Resolution (Bits)	12 b
S/N Ratio, ADCs / DACs (db) Typ [custom]	87 db
S/N Ratio, ADCs / DACs (db) Typ [custom]	94 db
Sigma Delta	False
Supplier Device Package	48-QFN (7x7)
Type	Audio, AC '97
Voltage - Supply, Analog [Max]	3.6 V
Voltage - Supply, Analog [Min]	1.8 V
Voltage - Supply, Digital [Max]	3.6 V
Voltage - Supply, Digital [Min]	1.71 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Supplier Device Package	Resolution (Bits)	Type	Sigma Delta	Data Interface	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	Mounting Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	S/N Ratio, ADCs / DACs (db) Typ [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]
Cirrus Logic Inc. WM9713CLGEFL/V	-25 °C	85 °C	48-VFQFN Exposed Pad	1.71 V	3.6 V	48-QFN (7x7)	12 b	Audio AC '97		I2S PCM	4	2	Surface Mount	1.8 V	3.6 V	87 db	94 db
Cirrus Logic Inc. WM9713CLGEFL/RV	-25 °C	85 °C	48-VFQFN Exposed Pad	1.71 V	3.6 V	48-QFN (7x7)	12 b	Audio Codec '97		I2S PCM	4	2	Surface Mount	1.8 V	3.6 V	87 db	94 db

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Audio, AC '97 Interface 12 b I2S, PCM 48-QFN (7x7)
