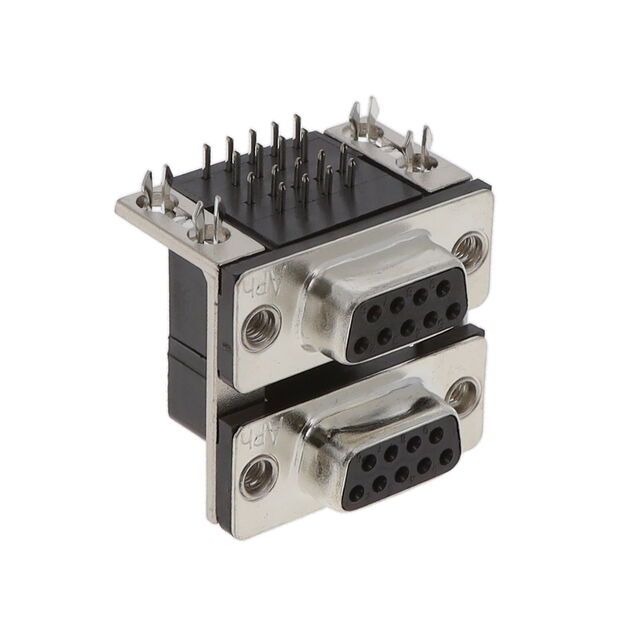

L17H1220134

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L17H1220134

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L17H1220134

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Shielded, Board Lock
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	1 (DE, E)
Termination	Solder
Voltage Rating	250 VDC

L17H12 Series

Part	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Color	Termination	Contact Form	Contact Finish	Contact Type	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Backset Spacing	Backset Spacing	Shell Size, Connector Layout	Flange Feature	Contact Material	Dielectric Material	Features	Material Flammability Rating	Mounting Type	Connector Type	Connector Style	Shell Size, Connector Layout	Contact Finish Thickness	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol ICC (Commercial Products) L17H1262131	250 VDC	0.76 Ám	30 Áin	3 A	Black	Solder	Stamped	Gold	Signal	2	105 ░C	-55 °C	8.08 mm	0.318 "	1 3	Female Screwlock (4-40) Mating Side	Brass	Thermoplastic Glass Filled	Board Lock Shielded	UL94 V-0	Through Hole Right Angle	Receptacle Female Sockets	D-Sub - Stacked
Amphenol ICC (Commercial Products) L17H1210130	250 VDC			3 A	Black	Solder	Stamped	Gold	Signal	2	105 ░C	-55 °C	8.08 mm	0.318 "		Housing/Shell (4-40)	Brass	Thermoplastic Glass Filled	Board Lock Shielded	UL94 V-0	Through Hole Right Angle	Plug Male Pins Receptacle Female Sockets	D-Sub - Stacked	1 (DE E)	Flash	9
Amphenol ICC (Commercial Products) L17H1220134	250 VDC			3 A	Black	Solder	Stamped	Gold	Signal	2	105 ░C	-55 °C	8.08 mm	0.318 "		Board Side (M3)	Brass	Thermoplastic Glass Filled	Board Lock Shielded	UL94 V-0	Through Hole Right Angle	Receptacle Female Sockets	D-Sub - Stacked	1 (DE E)	Flash	9
Amphenol ICC (Commercial Products) L17H1221130	250 VDC	0.38 µm	15 µin	3 A	Black	Solder	Stamped	Gold	Signal	2	105 ░C	-55 °C	8.08 mm	0.318 "		Housing/Shell (4-40)	Brass	Thermoplastic Glass Filled	Board Lock Shielded	UL94 V-0	Through Hole Right Angle	Receptacle Female Sockets	D-Sub - Stacked	1 (DE E)		9
Amphenol ICC (Commercial Products) L17H1210127	250 VDC			3 A		Solder	Stamped	Gold	Signal	2	125 °C	-55 °C	8.08 mm	0.318 "		Female Screwlock (4-40) Mating Side	Brass	Thermoplastic Glass Filled	Board Lock Shielded	UL94 V-0	Through Hole Right Angle	Plug Male Pins Receptacle Female Sockets	D-Sub - Stacked	1 (DE E)	Flash	9
Amphenol ICC (Commercial Products) L17H1210131	250 VDC			3 A	Black	Solder	Stamped	Gold	Signal	2	105 ░C	-55 °C	8.08 mm	0.318 "		Female Screwlock (4-40) Mating Side	Brass	Thermoplastic Glass Filled	Board Lock Shielded	UL94 V-0	Through Hole Right Angle	Plug Male Pins Receptacle Female Sockets	D-Sub - Stacked	1 (DE E)	Flash	9
Amphenol ICC (Commercial Products) L17H1221134	250 VDC	0.38 µm	15 µin	3 A	Black	Solder	Stamped	Gold	Signal	2	105 ░C	-55 °C	8.08 mm	0.318 "		Board Side (M3)	Brass	Thermoplastic Glass Filled	Board Lock Shielded	UL94 V-0	Through Hole Right Angle	Receptacle Female Sockets	D-Sub - Stacked	1 (DE E)		9
Amphenol ICC (Commercial Products) L17H1212134	250 VDC	0.76 Ám	30 Áin	3 A	Black	Solder	Stamped	Gold	Signal	2	105 ░C	-55 °C	8.08 mm	0.318 "		Board Side (M3)	Brass	Thermoplastic Glass Filled	Board Lock Shielded	UL94 V-0	Through Hole Right Angle	Plug Male Pins Receptacle Female Sockets	D-Sub - Stacked	1 (DE E)		9
Amphenol ICC (Commercial Products) L17H1270130	250 VDC			3 A	Black	Solder	Stamped	Gold	Signal	2 3	105 ░C	-55 °C	5.08 mm	0.2 in		Housing/Shell (4-40)	Brass	Thermoplastic Glass Filled	Board Lock Shielded	UL94 V-0	Through Hole Right Angle	Receptacle Female Sockets	D-Sub - Stacked	High Density	Flash	9 15	1	1
Amphenol ICC (Commercial Products) L17H1220130	250 VDC			3 A	Black	Solder	Stamped	Gold	Signal	2	105 ░C	-55 °C	8.08 mm	0.318 "		Housing/Shell (4-40)	Brass	Thermoplastic Glass Filled	Board Lock Shielded	UL94 V-0	Through Hole Right Angle	Receptacle Female Sockets	D-Sub - Stacked	1 (DE E)	Flash	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.34
		10	$ 4.84
		25	$ 4.59
		45	$ 4.48
		90	$ 4.27
		270	$ 3.74
		450	$ 3.63
		945	$ 3.09
		2430	$ 2.88

Description

General part information

L17H12 Series

9, 9 Position D-Sub - Stacked Receptacle, Female Sockets Connector
