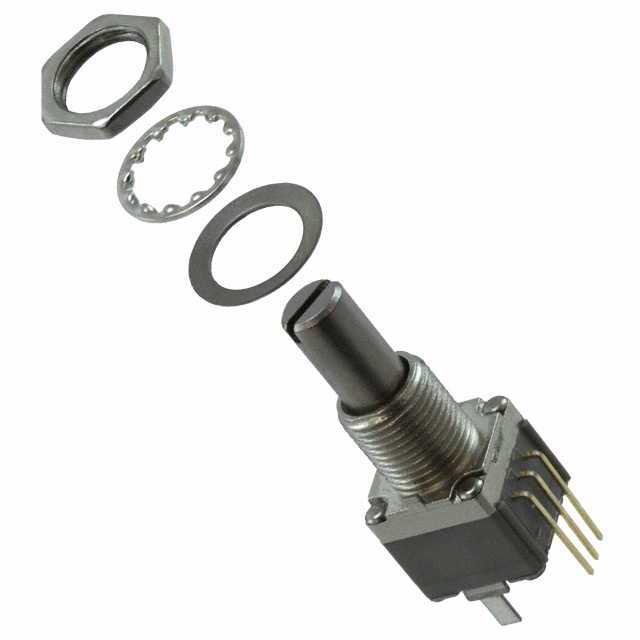

P260T-D1BS3CB100K

Active

TT Electronics/BI

POT 100K OHM 1/2W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P260T-D1BS3CB100K

Active

TT Electronics/BI

POT 100K OHM 1/2W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P260T-D1BS3CB100K

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Actuator Length [z]	20 mm
Actuator Length [z]	0.787 in
Actuator Type	Slotted
Adjustment Type	Top Adjustment
Built in Switch	False
Bushing Thread	3/8-32
Features	Sealed
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance (Ohms)	100 kOhms
Resistive Material	Conductive Plastic
Rotation	295 °
Size - Body [x]	12.7 mm
Size - Body [x]	0.5 in
Size - Body [y]	12.7 mm
Size - Body [y]	0.5 "
Taper	Linear
Termination Style	PC Pins
Tolerance	10 %

P260T Series

Part	Size - Body [x]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Rotation	Actuator Diameter	Actuator Diameter [diameter]	Taper	Number of Gangs	Resistance (Ohms)	Adjustment Type	Termination Style	Bushing Thread	Power (Watts)	Power (Watts)	Actuator Type	Number of Turns	Features	Resistive Material	Actuator Length [z]	Actuator Length [z]	Tolerance	Resistance (Ohms)	Actuator Diameter [diameter]	Actuator Length [x]	Actuator Length [x]	Size - Body [y]	Size - Body [z]	Size - Body [z]
TT Electronics/BI P260T-D1BS3CB100K	12.7 mm	12.7 mm	0.5 "	0.5 in	295 °	6.35 mm	0.25 in	Linear	1	100 kOhms	Top Adjustment	PC Pins	3/8-32	0.5 W	0.5 W	Slotted	1	Sealed	Conductive Plastic	20 mm	0.787 in	10 %
TT Electronics/BI P260T-S1BS4CB10K	12.7 mm	12.7 mm	0.5 "	0.5 in	295 °	6.35 mm	0.25 in	Linear	1		Top Adjustment	PC Pins	3/8-32	0.5 W	0.5 W	Slotted	1	Sealed	Conductive Plastic			10 %	10k
TT Electronics/BI P260T-S1AF1DB100K	12.7 mm	12.7 mm	0.5 "	0.5 in	295 °		0.126 in	Linear	1	100 kOhms	Top Adjustment	PC Pins	1/4-32	0.5 W	0.5 W	Flatted	1	Sealed	Conductive Plastic			10 %		3.2 mm	0.472 in	12 mm
TT Electronics/BI P260T-D1BS4CB10K	12.7 mm	12.7 mm	0.5 "	0.5 in	295 °	6.35 mm	0.25 in	Linear	1		Top Adjustment	PC Pins	3/8-32	0.5 W	0.5 W	Slotted	1	Sealed	Conductive Plastic			10 %	10k
TT Electronics/BI P260T-S1BS3CA10K	12.7 mm	12.7 mm	0.5 "	0.5 in	295 °	6.35 mm	0.25 in	Logarithmic	1		Top Adjustment	PC Pins	3/8-32	250 mW	0.25 W	Slotted	1	Sealed	Conductive Plastic	20 mm	0.787 in	10 %	10k
TT Electronics/BI P260T-D1BF4DB10K	12.7 mm	12.7 mm	0.5 "	0.5 in	295 °	6.35 mm	0.25 in	Linear	1		Top Adjustment	PC Pins	3/8-32	0.5 W	0.5 W	Flatted	1	Sealed	Conductive Plastic			10 %	10k
TT Electronics/BI P260T-S1BF3CB10K	12.7 mm	12.7 mm	0.5 "	0.5 in	295 °	6.35 mm	0.25 in	Linear	1		Top Adjustment	PC Pins	3/8-32	0.5 W	0.5 W	Flatted	1	Sealed	Conductive Plastic	20 mm	0.787 in	10 %	10k
TT Electronics/BI P260T-S1BS3CB10K	12.7 mm		0.5 "	0.5 in	295 °	6.35 mm	0.25 in	Linear	1		Top Adjustment	PC Pins	3/8-32	0.5 W	0.5 W	Slotted	1		Conductive Plastic	20 mm	0.787 in	10 %	10k				12.7 mm	12.7 mm	0.5 "
TT Electronics/BI P260T-S1BF3DB1MEG	12.7 mm	12.7 mm	0.5 "	0.5 in	295 °	6.35 mm	0.25 in	Linear	1		Top Adjustment	PC Pins	3/8-32	0.5 W	0.5 W	Flatted	1	Sealed	Conductive Plastic	20 mm	0.787 in	10 %	1M
TT Electronics/BI P260T-S1BF4DB10K	12.7 mm	12.7 mm	0.5 "	0.5 in	295 °	6.35 mm	0.25 in	Linear	1		Top Adjustment	PC Pins	3/8-32	0.5 W	0.5 W	Flatted	1	Sealed	Conductive Plastic			10 %	10k

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.73
		10	$ 9.41
		25	$ 8.61
		40	$ 8.23
		80	$ 7.69
		230	$ 6.93
		440	$ 6.50
		945	$ 6.16

Description

General part information

P260T Series

100k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.5W, 1/2W PC Pins
