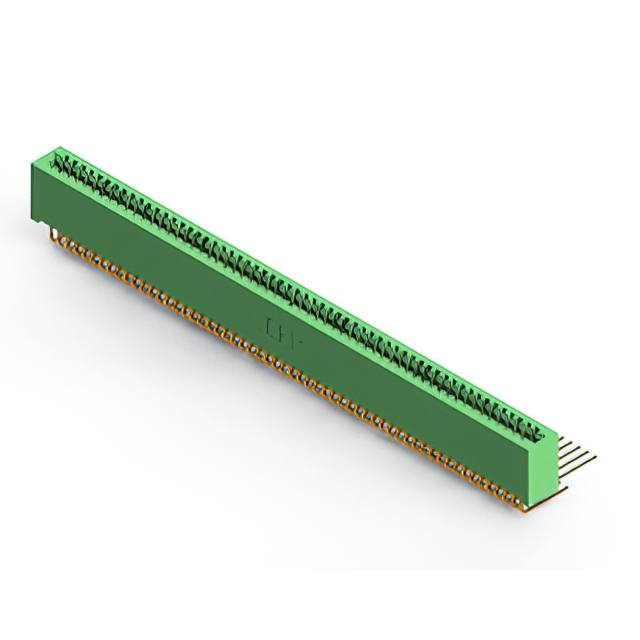

842-116-559-201
ActiveEDAC Inc.
CONN EDGE DUAL FML 116POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-116-559-201
ActiveEDAC Inc.
CONN EDGE DUAL FML 116POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-116-559-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 116 |
| Number of Positions/Bay/Row [custom] | 58 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
842-116 Series
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Features | Termination | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Number of Positions/Bay/Row [custom] | Color | Number of Rows | Gender | Contact Finish | Number of Positions | Mounting Type | Contact Type | Card Type | Contact Material | Read Out | Pitch [x] | Pitch [x] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | Solder | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 58 | Green | 2 | Female | Gold | 116 | Board Edge Straddle Mount | Cantilever | Non Specified - Dual Edge | Copper Alloy | Dual | 2.54 mm | 0.1 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 58 | Green | 2 | Female | Gold | 116 | Through Hole | Cantilever | Non Specified - Dual Edge | Copper Alloy | Dual | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 58 | Green | 2 | Female | Gold | 116 | Through Hole | Cantilever | Non Specified - Dual Edge | Copper Alloy | Dual | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 58 | Green | 2 | Female | Gold | 116 | Through Hole | Cantilever | Non Specified - Dual Edge | Copper Alloy | Dual | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 58 | Green | 2 | Female | Gold | 116 | Through Hole | Cantilever | Non Specified - Dual Edge | Copper Alloy | Dual | 2.54 mm | 0.1 in | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 58 | Green | 2 | Female | Gold | 116 | Through Hole | Cantilever | Non Specified - Dual Edge | Copper Alloy | Dual | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 58 | Green | 2 | Female | Gold | 116 | Through Hole | Cantilever | Non Specified - Dual Edge | Copper Alloy | Dual | 2.54 mm | 0.1 in | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 58 | Green | 2 | Female | Gold | 116 | Through Hole Right Angle | Cantilever | Non Specified - Dual Edge | Copper Alloy | Dual | 2.54 mm | 0.1 in | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | Solder | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 58 | Green | 2 | Female | Gold | 116 | Board Edge Straddle Mount | Cantilever | Non Specified - Dual Edge | Copper Alloy | Dual | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 58 | Green | 2 | Female | Gold | 116 | Through Hole | Cantilever | Non Specified - Dual Edge | Copper Alloy | Dual | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-116 Series
116 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
