APT2012SGC

Active

Kingbright

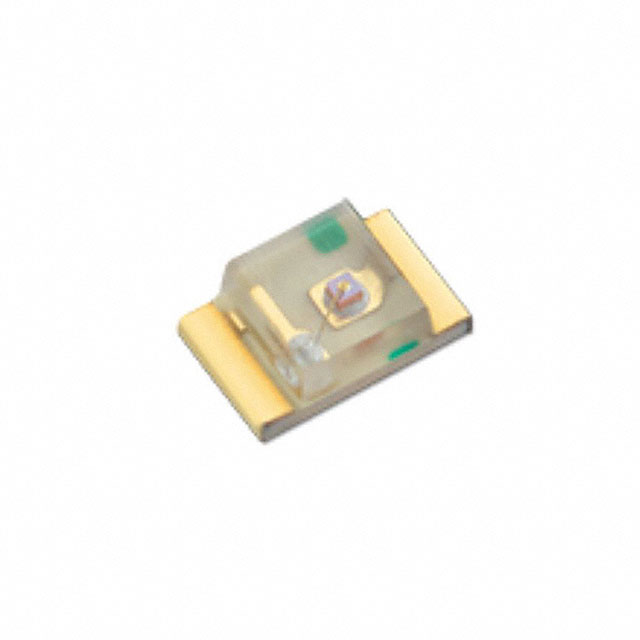

LED GREEN CLEAR CHIP SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APT2012SGC

Active

Kingbright

LED GREEN CLEAR CHIP SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APT2012SGC

Color	Green
Configuration	Standard
Current - Test	20 mA
Lens Color	Colorless
Lens Size [x]	1.3 mm
Lens Size [y]	1.25 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	12 mcd
Mounting Type	Surface Mount
Package / Case	0805
Size / Dimension [x]	2 mm
Size / Dimension [y]	1.25 mm
Supplier Device Package	Chip LED
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Dominant	568 nm
Wavelength - Peak	565 nm

APT2012 Series

Part	Color	Lens Color	Millicandela Rating	Viewing Angle	Voltage - Forward (Vf) (Typ)	Lens Style	Package / Case	Supplier Device Package	Wavelength - Dominant	Configuration	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Lens Size [x]	Lens Size [y]	Mounting Type	Wavelength - Peak	Wavelength - Peak [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Radiant Intensity (Ie) Min @ If [Min]	Wavelength	Current - DC Forward (If) (Max) [Max]	Type
Kingbright APT2012MGC	Green	Colorless	70 mcd	120 °	2.1 V	Rectangle with Flat Top	0805	Chip LED	570 nm	Standard	20 mA	2 mm	1.25 mm	Clear	1.3 mm	1.25 mm	Surface Mount
Kingbright APT2012EC	Red	Colorless	8 mcd	120 °	2 V	Rectangle with Flat Top	0805	Chip LED	617 nm	Standard	20 mA	2 mm	1.25 mm	Clear	1.3 mm	1.25 mm	Surface Mount	627 nm
Kingbright APT2012SGC	Green	Colorless	12 mcd	120 °	2.2 V	Rectangle with Flat Top	0805	Chip LED	568 nm	Standard	20 mA	2 mm	1.25 mm	Clear	1.3 mm	1.25 mm	Surface Mount	565 nm
Kingbright APT2012LSECK/J3-PRV	Red	Colorless	40 mcd	140 °	1.8 V	Rectangle with Flat Top	0805	2-SMD	625 nm	Standard	2 mA	2 mm	1.25 mm	Clear	1.2 mm	1.25 mm	Surface Mount		640 nm
Kingbright APT2012LVBC/D	Blue	Colorless	24 mcd	120 °	2.65 V	Rectangle with Flat Top	0805	2-SMD	470 nm	Standard	2 mA	2 mm	1.25 mm	Clear	1.2 mm	1.25 mm	Surface Mount	465 nm
Kingbright APT2012ZGC	Green	Colorless	600 mcd	120 °	3.3 V	Rectangle with Flat Top	0805	Chip LED	525 nm	Standard	20 mA	2 mm	1.25 mm	Clear	1.3 mm	1.25 mm	Surface Mount	515 nm
Kingbright APT2012SECK/J3-PRV	Red	Colorless	350 mcd	120 °	2.2 V	Rectangle with Flat Top	0805	Chip LED	625 nm	Standard	20 mA	2 mm	1.25 mm	Clear	1.3 mm	1.25 mm	Surface Mount		640 nm
Kingbright APT2012LSYCK/J3-PRV	Yellow	Colorless	25 mcd	120 °	1.85 V	Rectangle with Flat Top	0805	2-SMD	590 nm	Standard	2 mA	2 mm	1.25 mm	Clear	1.2 mm	1.25 mm	Surface Mount	590 nm
Kingbright APT2012SF4C-PRV				120 °	1.3 V		0805										Surface Mount			85 °C	-40 °C	Top View	0.8 mW/sr	880 nm	50 mA	Infrared (IR)
Kingbright APT2012SYCK/J3-PRV	Yellow	Colorless	320 mcd	120 °	2 V	Rectangle with Flat Top	0805	Chip LED	590 nm	Standard	20 mA	2 mm	1.25 mm	Clear	1.3 mm	1.25 mm	Surface Mount	590 nm
