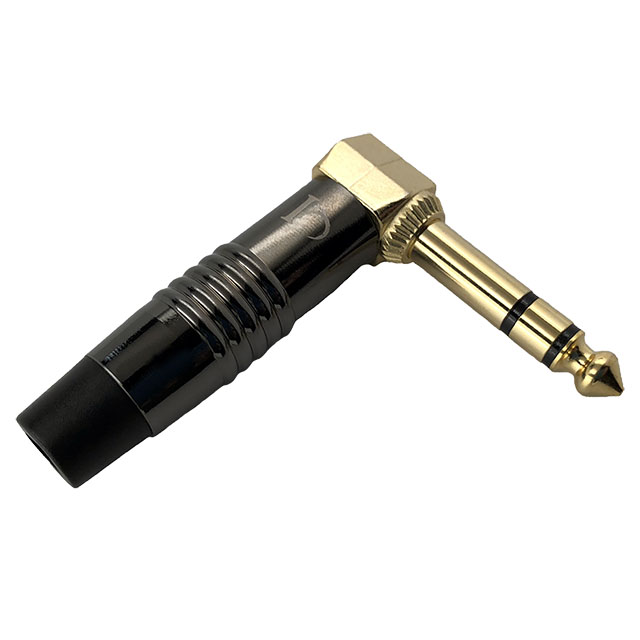

IO-T3MCH-R
ActiveIO Audio Technologies
CONN CHR/GOLD 90 STEREO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IO-T3MCH-R |
|---|---|
| Actual Diameter [diameter] | 0.25 in |
| Actual Diameter [diameter] | 6.35 mm |
| Body Color | Gold, Black |
| Cable Opening [custom] | 6.35 mm |
| Cable Opening [custom] | 0.25 in |
| Connector Type | Phone Plug |
| Contact Material - Plating [custom] | Gold |
| Gender | Male |
| Includes | 1 Connector, 1 Handle |
| Internal Switch(s) | False |
| Mating Length/Depth [z] | 1.213 in |
| Mating Length/Depth [z] | 30.8 mm |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder Eyelet(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.75 | |
| 10 | $ 6.71 | |||
| 25 | $ 6.06 | |||
| 50 | $ 5.62 | |||
| 100 | $ 5.22 | |||
| 250 | $ 4.74 | |||
| 500 | $ 4.42 | |||
| 1000 | $ 4.14 | |||
| 2500 | $ 3.85 | |||
Description
General part information
IO-T3MCH Series
6.35mm (0.250", 1/4") - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
