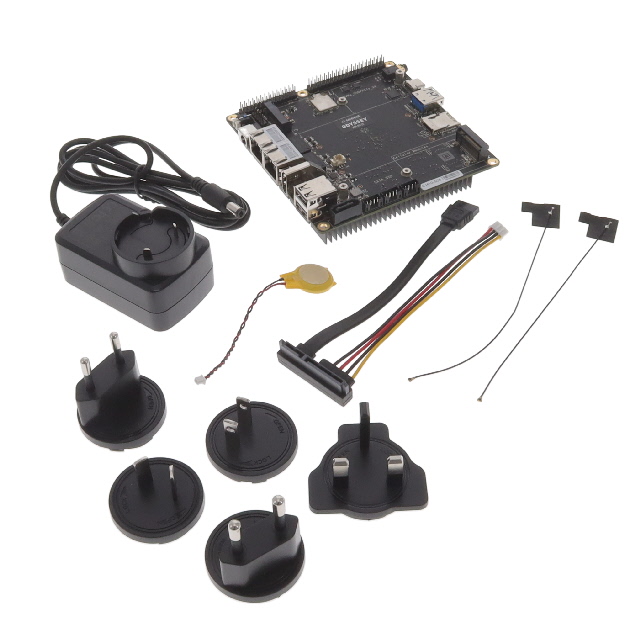

102110539

Obsolete

Seeed Technology Co., Ltd

SBC 2.7GHZ 4 CORE 8GB/- RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

102110539

Obsolete

Seeed Technology Co., Ltd

SBC 2.7GHZ 4 CORE 8GB/- RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	102110539

Core Processor	Intel Celeron J4125
Digital I/O Lines	40
Ethernet	GbE (2)
Expansion Site/Bus	Micro-SD, M.2 PCIe, M.2 SATA, SATA III, SIM Card
Form Factor	Raspberry Pi
Number of Cores	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
RAM Capacity/Installed	8 GB
RAM Capacity/Installed	-
Size / Dimension [x]	110 mm
Size / Dimension [x]	4.331 in
Size / Dimension [y]	110 mm
Size / Dimension [y]	4.331 in
Speed	2.7 GHz
USB	USB 2.0 Type A (2), USB 3.1 Type C (1), USB 3.1 Type A (1)
Video Outputs	DP, HDMI
Watchdog Timer	False

102110 Series

Part	Digital I/O Lines	USB [custom]	Storage Interface	Core Processor	Speed	Speed	Video Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Cores	RAM Capacity/Installed	RAM Capacity/Installed	Expansion Site/Bus	Ethernet	USB	Contents	Operating Temperature [Max]	Operating Temperature [Min]	Form Factor	USB	Ethernet	Cooling Type	RS-232 (422, 485)	Ethernet [Min]	Ethernet [Max]
Seeed Technology Co., Ltd 102110379	40	USB 2.0 (1) USB 3.0 (1)	eMMC microSD	ARM Cortex A53 Cortex A72 Rockchip RK3399Pro	1.8 GHz	1.4 GHz	HDMI MIPI-DSI	3.94 in	100.07 mm	100.07 mm	3.94 in	6	8 GB	-	GPIO I2C I2S SPDIF SPI UART	GbE
Seeed Technology Co., Ltd 102110137	40		eMMC microSD	ARM Cortex A53 Cortex A72 Rockchip RK3399	2 GHz	1.4 GHz	HDMI	2.13 in	54.1 mm	3.35 "	3.35 in	6	2 GB	-	GPIO I2C I2S SPI UART		USB 2.0 (1) USB 3.0 (2)	SD Card
Seeed Technology Co., Ltd 102110539	40			Intel Celeron J4125		2.7 GHz	DP HDMI	4.331 in	110 mm	110 mm	4.331 in	4	8 GB	-	M.2 PCIe M.2 SATA Micro-SD SATA III SIM Card	GbE (2)	USB 2.0 Type A (2) USB 3.1 Type A (1) USB 3.1 Type C (1)		75 ░C	0 °C	Raspberry Pi
Seeed Technology Co., Ltd 102110301			eMMC microSD	Broadcom BCM2711 Arm Cortex-A72		1.5 GHz	CSI DSI HDMI					4	0 GB 4 GB		GPIO PCIe	GbE						2 2
Seeed Technology Co., Ltd 102110460			eMMC/SD SDIO	NXP i.MX 8M ARM Cortex-A53 Cortex-M4F		1.5 GHz	CSI DSI HDMI	1.575 in	40 mm	48 mm	1.89 in	0.25	0 GB 4 GB		GPIO I2C PCIe PWM SPI UART	10 Mbps 100 Mbps 1000 Mbps GbE						2 2
Seeed Technology Co., Ltd 102110611			SATA (2)	Intel 11th GenCore i3 1115G4		4.1 GHz	DP eDP HDMI LCD Multi-Display					2	0 GB 64 GB		M.2 PCIe	GbE (1) RJ45 (1)	USB 2.0 Type A (1) USB 3.2 Type A (1)						10 Mbps 100 Mbps 1000 Mbps	Fan	2
Seeed Technology Co., Ltd 102110364	26						HDMI					4	0 GB 512 MB		GPIO I2C I2S PWM SPI UART	RJ45	USB 2.0 Host Type-A USB 2.0 OTG Type-C									10 Mbps	100 Mbps
Seeed Technology Co., Ltd 102110319			eMMC	STM32MP157C ARM Cortex-A7 Cortex-M4		650 MHz	MIPI-DSI	1.496 "	37.99 mm	37.99 mm	1.496 "	2	512 MB	-	GPIO I2C SD	GbE	USB OTG Type-C (1) USB Type-A (2)				Raspberry Pi
Seeed Technology Co., Ltd 102110377	40	USB 2.0 (1) USB 3.0 (1)	eMMC microSD	ARM Cortex A53 Cortex A72 Rockchip RK3399Pro	1.8 GHz	1.4 GHz	HDMI MIPI-DSI	3.94 in	100.07 mm	100.07 mm	3.94 in	6	4 GB	-	GPIO I2C I2S SPDIF SPI UART	GbE
Seeed Technology Co., Ltd 102110608			SATA (2)	Intel 11th GenCore i3 1125G4		3.7 GHz	DP eDP HDMI LCD Multi-Display					4	0 GB 64 GB		M.2 PCIe	GbE (1) RJ45 (1)	USB 2.0 Type A (1) USB 3.2 Type A (1)						10 Mbps 100 Mbps 1000 Mbps	Fan	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

102110 Series

Single Board Computer 2.7GHz 4 Core 8GB/- RAM Intel Celeron J4125

Documents

Technical documentation and resources
