EGG.2B.655.ZZM

Active

LEMO

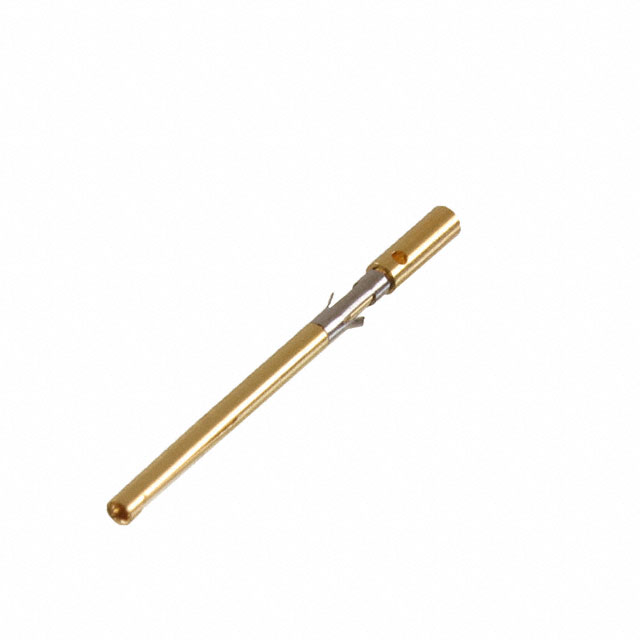

CONTACT SOCKET 22-26AWG CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGG.2B.655.ZZM

Active

LEMO

CONTACT SOCKET 22-26AWG CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EGG.2B.655.ZZM

Contact Finish	Gold
Contact Material	Bronze
Contact Size	0.7 mm
Contact Termination	Crimp
Contact Type	Socket
Type	Signal, Machined
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	22 AWG
Wire Gauge or Range - mm˛ [Max]	0.34 mm˛
Wire Gauge or Range - mm˛ [Min]	0.14 mm˛

EGG.2B Series

Part	Ingress Protection	Contact Type	Shielding	Type	Number of Positions	Contact Size	Shell Size - Insert	Note	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish - Mating	Connector Type	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Current Rating (Amps)	Contact Material	Material Flammability Rating	Number of Positions	Termination	Shell Material	Mounting Feature	Fastening Type	Color	Primary Material	Mounting Type	Shell Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Termination	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Contact Finish	Number of Positions [custom]	Number of Positions [custom]
LEMO EGG.2B.410.YL	IP50	Crimp and Solder Cup	Unshielded	For Female Sockets	10	0.9 mm	410	Note: Contacts Not Included; Insert Only Requires Shell	G	-55 °C	250 °C	Circular
LEMO EGG.2B.319.ZLL	IP50		Shielded		19		319		G	-55 °C	250 °C		Gold	Female Sockets Insert	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Insert Only Requires Shell	5 A	Bronze	UL94 V-0
LEMO EGG.2B.416.YL	IP50	Crimp and Solder Cup	Unshielded	For Female Sockets		0.7 mm	416	Note: Contacts Not Included; Insert Only Requires Shell	G	-55 °C	250 °C	Circular										16
LEMO EGG.2B.306.CLN	IP50		Shielded		6		306		G	-55 °C	250 °C		Gold	Receptacle Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám		12 A	Bronze	UL94 V-0		Solder	Brass	Bulkhead - Rear Side Nut	Push-Pull	Silver	Metal	Panel Mount Through Hole	Chrome
LEMO EGG.2B.308.CLN	IP50		Shielded		8		308		G	-55 °C	250 °C		Gold	Receptacle Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám		10 A	Bronze	UL94 V-0		Solder	Brass	Bulkhead - Rear Side Nut	Push-Pull	Silver	Metal	Panel Mount Through Hole	Chrome
LEMO EGG.2B.655.ZZM		Socket		Machined Signal		0.7 mm														Bronze											22 AWG	26 AWG	Crimp	0.14 mm˛	0.34 mm˛	Gold
LEMO EGG.2B.304.CYM	IP50		Shielded		4		304		G	-55 °C	250 °C		Gold	Receptacle Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám		15 A	Bronze	UL94 V-0		Crimp	Brass	Bulkhead - Rear Side Nut	Push-Pull	Silver	Metal		Chrome
LEMO EGG.2B.307.ZLL	IP50		Shielded		7		307		G	-55 °C	250 °C		Gold	Female Sockets Insert	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Insert Only Requires Shell	11 A	Bronze	UL94 V-0
LEMO EGG.2B.675.ZZM		Socket		Machined Signal		2 mm														Bronze											12 AWG	16 AWG	Crimp	1.5 mm˛	2.5 mm˛	Gold
LEMO EGG.2B.804.CLL1	IP50		Shielded				804		G	-55 °C	250 °C		Gold	Receptacle Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám		7 A	Bronze	UL94 V-0			Brass	Bulkhead - Rear Side Nut	Push-Pull	Silver	Metal		Chrome							4	1
