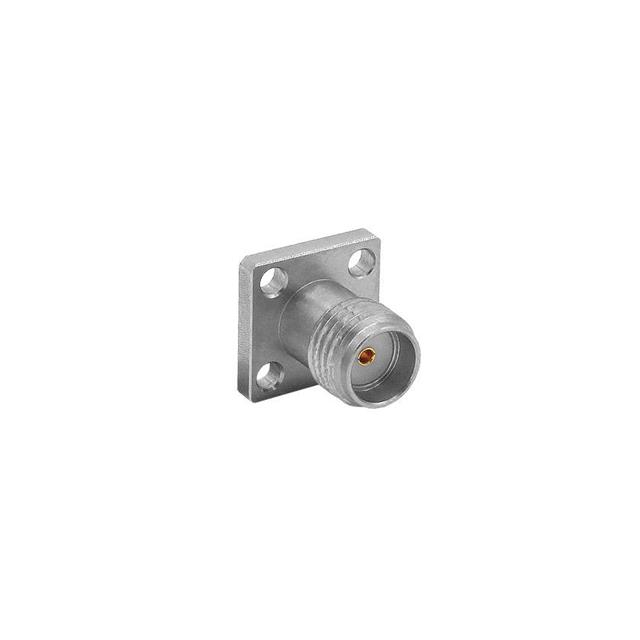

RFSMAA4PAAC

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RFSMAA4PAAC

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFSMAA4PAAC

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Compression
Dielectric Material	Polyetherimide (PEI)
Frequency - Max [Max]	26.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw
Voltage Rating	335 V

RFSMA Series

...

Part	Mounting Feature	Frequency - Max [Max]	Shield Termination	Voltage Rating	Contact Termination	Impedance	Housing Color	Mating Cycles	Center Contact Material	Connector Style	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Connector Type	Body Material	Mounting Type	Features
BULGIN LIMITED RFSMAA2JCCDQ	Flange	26.5 GHz	Solder	335 V	Solder	50 Ohms	Silver	500	Beryllium Copper	SMA	Polyetherimide (PEI)	-65 ░C	165 °C	1	Female Socket Jack	Stainless Steel	Panel Mount Through Hole
BULGIN LIMITED RFSMAA2PCEE	Flange	26.5 GHz	Screw	335 V	Compression	50 Ohms	Silver	500	Beryllium Copper	SMA	Polyetherimide (PEI)	-65 ░C	165 °C	1	Male Pin Plug	Stainless Steel
BULGIN LIMITED RFSMAA2PEGIDHE	Flange	26.5 GHz	Solder	335 V	Solder	50 Ohms	Silver	500	Beryllium Copper	SMA	Polyetherimide (PEI)	-65 ░C	165 °C	1	Male Pin Plug	Stainless Steel	Panel Mount Through Hole	Extended Insulation
BULGIN LIMITED RFSMAA4PCCB	Flange	26.5 GHz	Screw	335 V	Compression	50 Ohms	Silver	500	Beryllium Copper	SMA	Polyetherimide (PEI)	-65 ░C	165 °C	1	Male Pin Plug	Stainless Steel
BULGIN LIMITED RFSMAA2JEGA	Flange	26.5 GHz	Screw	335 V	Compression	50 Ohms	Silver	500	Beryllium Copper	SMA	Polyetherimide (PEI)	-65 ░C	165 °C	1	Female Socket Jack	Stainless Steel
BULGIN LIMITED RFSMAA2PCEA	Flange	26.5 GHz	Screw	335 V	Compression	50 Ohms	Silver	500	Beryllium Copper	SMA	Polyetherimide (PEI)	-65 ░C	165 °C	1	Male Pin Plug	Stainless Steel
BULGIN LIMITED RFSMAA2JEGACDD	Flange	26.5 GHz	Solder	335 V	Solder	50 Ohms	Silver	500	Beryllium Copper	SMA	Polyetherimide (PEI)	-65 ░C	165 °C	1	Female Socket Jack	Stainless Steel	Panel Mount Through Hole	Extended Insulation
BULGIN LIMITED RFSMAA2JEGE	Flange	26.5 GHz	Screw	335 V	Compression	50 Ohms	Silver	500	Beryllium Copper	SMA	Polyetherimide (PEI)	-65 ░C	165 °C	1	Female Socket Jack	Stainless Steel
BULGIN LIMITED RFSMAA4PAAC	Flange	26.5 GHz	Screw	335 V	Compression	50 Ohms	Silver	500	Beryllium Copper	SMA	Polyetherimide (PEI)	-65 ░C	165 °C	1	Male Pin Plug	Stainless Steel
BULGIN LIMITED RFSMAA4JAAFFGE	Flange	26.5 GHz	Solder	335 V	Solder	50 Ohms	Silver	500	Beryllium Copper	SMA	Polyetherimide (PEI)	-65 ░C	165 °C	1	Female Socket Jack	Stainless Steel	Panel Mount Through Hole	Extended Insulation

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 24.32
Newark	Each	1	$ 33.93
		100	$ 33.26
		200	$ 32.59

Description

General part information

RFSMA Series

SMA Connector Plug, Male Pin 50 Ohms Panel Mount Compression
