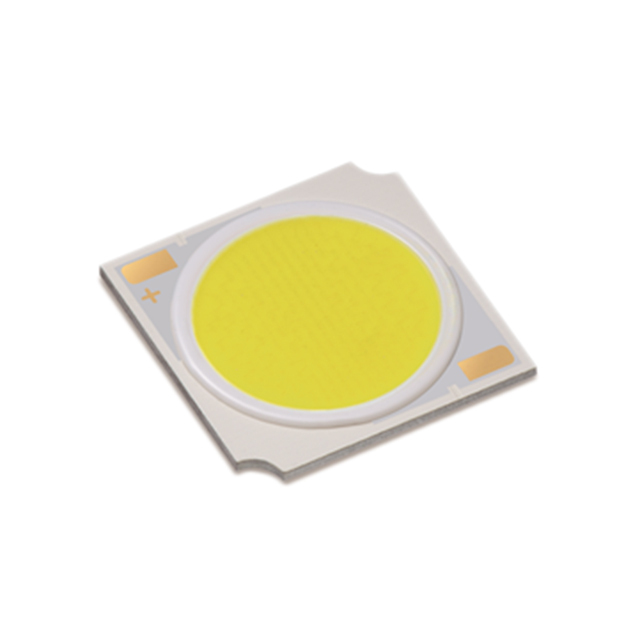

CLU038-1208C4-503M2K1

Active

Citizen Finedevice Co Ltd

LED COB CLU038 COOL WHT SQ 5000K

Deep-Dive with AI

Search across all available documentation for this part.

CLU038-1208C4-503M2K1

Active

Citizen Finedevice Co Ltd

LED COB CLU038 COOL WHT SQ 5000K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLU038-1208C4-503M2K1

Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	1.84 A
Current - Test	720 mA
Height [z]	1.4 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	14.5 mm
Lumens/Watt @ Current - Test	150 lm/W
Luminous Flux @ Current/Temperature	3749 lm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	34.6 V

CLU038 Series

Part	Luminous Flux @ Current/Temperature	Lens Type	Lumens/Watt @ Current - Test	Color	Current - Max [Max]	Type	Light Emitting Surface (LES) [diameter]	Temperature - Test	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Configuration	Voltage - Forward (Vf) (Typ)	Current - Test	Height [z]	CCT (K)
Citizen Finedevice Co Ltd CLU038-1208C4-503M2K1	3749 lm	Flat	150 lm/W	Cool White	1.84 A	Chip On Board (COB)	14.5 mm	85 °C	19 mm	19 mm	80	Square	34.6 V	720 mA	1.4 mm
Citizen Finedevice Co Ltd CLU038-1210C4-353M2K1	4470 lm	Flat	144 lm/W	Warm White	2.3 A	Chip On Board (COB)	14.5 mm	85 °C	19 mm	19 mm	80	Square	34.6 V	900 mA	1.4 mm	3500 K
Citizen Finedevice Co Ltd CLU038-1206C4-273H7K4	1978 lm	Flat	106 lm/W	Warm White	1.38 A	Chip On Board (COB)	14.5 mm	85 °C	19 mm	19 mm	97	Square	34.6 V	540 mA	1.4 mm	2700 K
Citizen Finedevice Co Ltd CLU038-1210C4-273M2K1		Flat	133 lm/W	Warm White	2.3 A	Chip On Board (COB)	14.5 mm	85 °C	19 mm	19 mm	80	Square	34.6 V	900 mA	1.4 mm	2700 K
Citizen Finedevice Co Ltd CLU038-1206C4-30AL7K3	2897 lm	Flat	155 lm/W	Warm White	1.38 A	Chip On Board (COB)	14.5 mm	85 °C	19 mm	19 mm	70	Square	34.6 V	540 mA	1.4 mm	3000 K
Citizen Finedevice Co Ltd CLU038-1206C4-273H5K2	2168 lm	Flat	116 lm/W	Warm White	1.38 A	Chip On Board (COB)	14.5 mm	85 °C	19 mm	19 mm	90	Square	34.6 V	540 mA	1.4 mm	2700 K
Citizen Finedevice Co Ltd CLU038-1205C4-303H5K2	1907 lm	Flat	122 lm/W	Warm White	1.15 A	Chip On Board (COB)	14.5 mm	85 °C	19 mm	19 mm	90	Square	34.6 V	450 mA	1.4 mm	3000 K
Citizen Finedevice Co Ltd CLU038-1205C4-303H7K4	1740 lm	Flat	112 lm/W	Warm White	1.15 A	Chip On Board (COB)	14.5 mm	85 °C	19 mm	19 mm	97	Square	34.6 V	450 mA	1.4 mm	3000 K
Citizen Finedevice Co Ltd CLU038-1206C4-40AL7K3	2992 lm	Flat	160 lm/W	Neutral White	1.38 A	Chip On Board (COB)	14.5 mm	85 °C	19 mm	19 mm	70	Square	34.6 V	540 mA	1.4 mm	4000 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	48	$ 14.52

Description

General part information

CLU038 Series

LED Lighting COBs Engines Modules Chip On Board (COB) CLU038 White, Cool Square

Documents

Technical documentation and resources

No documents available
