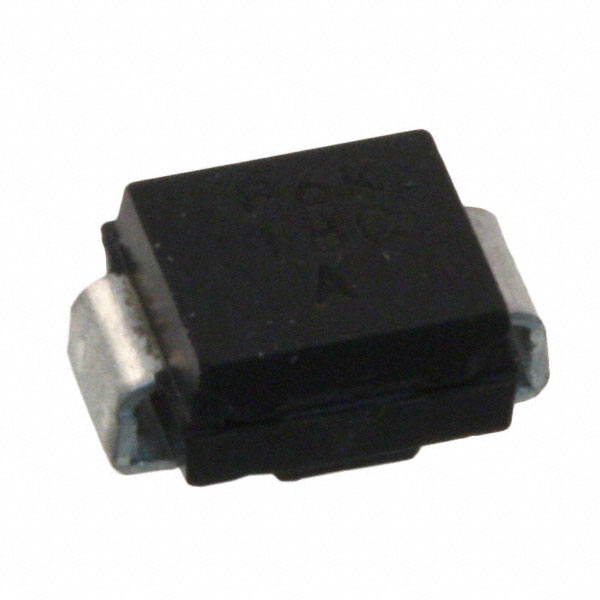

SMBJ24CA - SMBJP6KE18CA

SMBJ24CA

Active
Microsemi Corporation

TVS DIODE 24VWM 38.9VC SMBJ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
SMBJ24CA - SMBJP6KE18CA

SMBJ24CA

Active
Microsemi Corporation

TVS DIODE 24VWM 38.9VC SMBJ

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationSMBJ24CA
ApplicationsGeneral Purpose
Bidirectional Channels [custom]1
Current - Peak Pulse (10/1000µs)15.4 A
Mounting TypeSurface Mount
Operating Temperature [Max]150 °C
Operating Temperature [Min]-65 °C
Package / CaseSMB, DO-214AA
Power - Peak Pulse600 W
Power Line ProtectionFalse
Supplier Device PackageDO-214AA (SMBJ)
TypeZener
Voltage - Breakdown (Min) [Min]26.7 V
Voltage - Clamping (Max) @ Ipp [Max]38.9 V
Voltage - Reverse Standoff (Typ)24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.48
1$ 0.37
1$ 0.41
1$ 0.64
10$ 0.32
10$ 0.34
10$ 0.29
10$ 0.55
100$ 0.19
100$ 0.17
100$ 0.17
100$ 0.38
500$ 0.16
500$ 0.30
500$ 0.14
500$ 0.18
1000$ 0.11
1000$ 0.24
1000$ 0.12
1000$ 0.10
Digi-Reel® 1$ 0.64
1$ 0.48
1$ 0.41
1$ 0.37
10$ 0.29
10$ 0.55
10$ 0.34
10$ 0.32
100$ 0.17
100$ 0.19
100$ 0.17
100$ 0.38
500$ 0.30
500$ 0.18
500$ 0.16
500$ 0.14
1000$ 0.24
1000$ 0.12
1000$ 0.10
1000$ 0.11
Tape & Reel (TR) 3000$ 0.22
3000$ 0.11
3000$ 0.10
3000$ 0.06
6000$ 0.10
6000$ 0.20
6000$ 0.06
6000$ 0.11
9000$ 0.09
9000$ 0.06
9000$ 0.10
9000$ 0.19
30000$ 0.19
30000$ 0.09
30000$ 0.09
75000$ 0.08
75000$ 0.09

Description

General part information

SMBJ24 Series

38.9V Clamp 15.4A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ)

Documents

Technical documentation and resources

Datasheet

Datasheet
