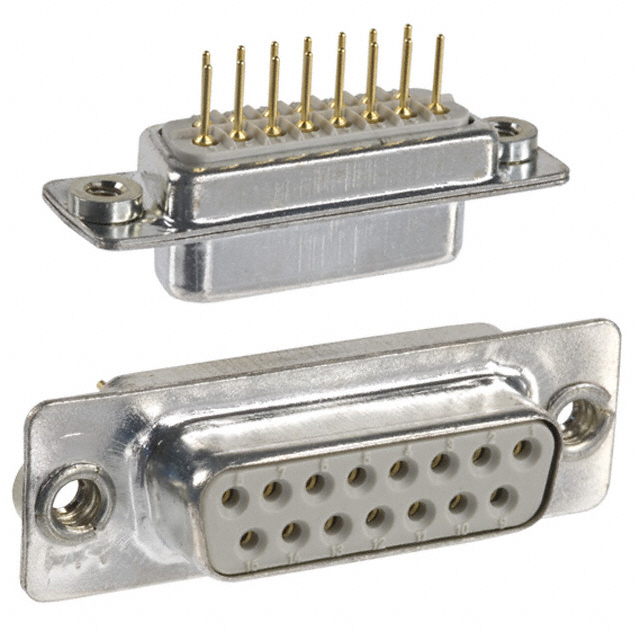

172-015-212-011

Obsolete

MH Connectors

CONN D-SUB RCPT 15P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

172-015-212-011

Obsolete

MH Connectors

CONN D-SUB RCPT 15P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172-015-212-011

Color	Beige
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Shell Size, Connector Layout	2
Termination	Solder

172-015 Series

Part	Material Flammability Rating	Contact Finish Thickness	Flange Feature	Contact Finish	Mounting Type	Number of Positions	Connector Type	Shell Size, Connector Layout	Dielectric Material	Connector Style	Current Rating (Amps)	Contact Type	Termination	Number of Rows	Color	Contact Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Min]	Wire Gauge [Max]	Shell Material, Finish
MH Connectors 172-015-282-011	UL94 V-0	Flash	4-40 Board Side	Gold	Panel Mount Through Hole	15	Receptacle Female Sockets	2	Polybutylene Terephthalate (PBT)	D-Sub	5 A	Signal	Solder	2
MH Connectors 172-015-142R001	UL94 V-0	Flash	Housing/Shell (Unthreaded)	Gold	Panel Mount Through Hole	15	Male Pins Plug	2	Polybutylene Terephthalate (PBT) Polyester	D-Sub	5 A	Signal	Wire Wrap	2	Beige	Brass	Grounding Indents
MH Connectors 172-015-212-011	UL94 V-0	Flash	4-40 Board Side	Gold	Panel Mount Through Hole	15	Receptacle Female Sockets	2	Polybutylene Terephthalate (PBT)	D-Sub	5 A	Signal	Solder	2	Beige			-50 °C	125 °C
MH Connectors 172-015-212R911	UL94 V-0	Flash	Board Side (4-40) Mating Side Female Screwlock (4-40)	Gold	Panel Mount Through Hole	15	Receptacle Female Sockets	2	Polybutylene Terephthalate (PBT) Polyester	D-Sub	5 A	Signal	Solder	2	Beige	Brass
MH Connectors 172-015-282-021	UL94 V-0	Flash	4-40 Board Side	Gold	Panel Mount Through Hole	15	Receptacle Female Sockets	2	Polybutylene Terephthalate (PBT)	D-Sub	5 A	Signal	Solder	2
MH Connectors 172-015-212R011	UL94 V-0	Flash	4-40 Board Side	Gold	Panel Mount Through Hole	15	Receptacle Female Sockets	2	Polybutylene Terephthalate (PBT) Polyester	D-Sub	5 A	Signal	Solder	2	Beige	Brass
MH Connectors 172-015-242R011	UL94 V-0	Flash	4-40 Board Side	Gold	Panel Mount Through Hole	15	Receptacle Female Sockets	2	Polybutylene Terephthalate (PBT) Polyester	D-Sub	5 A	Signal	Wire Wrap	2	Beige	Brass
MH Connectors 172-015-102-031	UL94 V-0	Flash	4-40	Gold		15	Male Pins Plug	2	Polybutylene Terephthalate (PBT)	D-Sub	5 A	Signal		2		Brass	Grounding Indents			20 AWG	28 AWG
MH Connectors 172-015-182-001	UL94 V-0	Flash	Housing/Shell (Unthreaded)	Gold	Panel Mount Through Hole	15	Male Pins Plug	2	Polybutylene Terephthalate (PBT)	D-Sub	5 A	Signal	Solder	2			Grounding Indents
MH Connectors 172-015-181-001	UL94 V-0	Flash	Housing/Shell (Unthreaded)	Gold	Panel Mount Through Hole	15	Male Pins Plug	2	Polybutylene Terephthalate (PBT)	D-Sub	5 A	Signal	Solder	2								Steel Yellow Chromate Plated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

172-015 Series

15 Position D-Sub Receptacle, Female Sockets Connector
