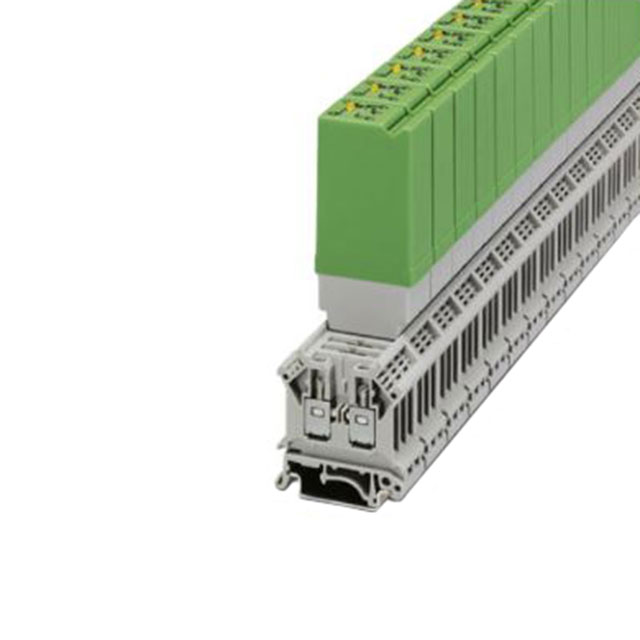

2826266
ActivePhoenix Contact
RELAY GEN PURP SPDT 500MA 230V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2826266
ActivePhoenix Contact
RELAY GEN PURP SPDT 500MA 230V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2826266 |
|---|---|
| Approval Agency | EAC |
| Coil Current | 18 mA |
| Coil Resistance | 12.78 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Gold (Au) |
| Contact Rating (Current) | 0.5 A |
| Features | Varistor |
| Mounting Type | DIN Rail |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 8 ms |
| Switching Voltage | 36 VDC, 30 VAC |
| Termination Style | Spring Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 53.67 | |
Description
General part information
28262 Series
General Purpose Relay SPDT (1 Form C) DIN Rail
